Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity

I'm Online Chat Now

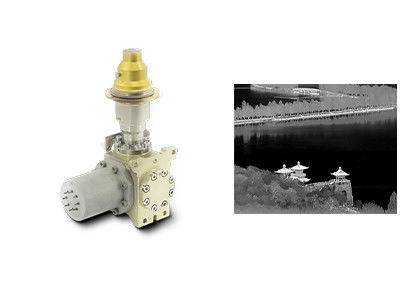

Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity

Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity
Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity

Large Image :  Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C615M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Technology: Infrared Material: MCT
Type: Cooled Infrared Detector Detector Resolution: 640x512
NETD: ≤17mK (F2); ≤18mK (F4) Spectral Range: 3.7~4.8μm MW
High Light:

MWIR Cooled Infrared Detector

,

Cooled Infrared Detector 640x512

About C615M Cooled Infrared Detector

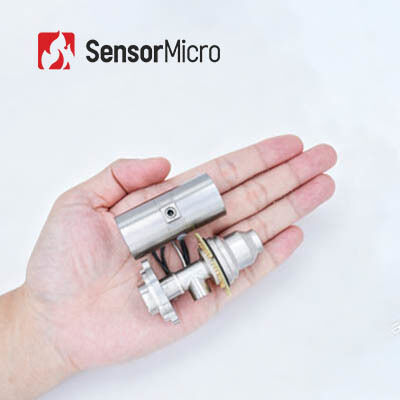

Ultra-compact 640x512 / 15μm MWIR Cooled Infrared Detector for Long Range Surveillance



Product Description



C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512 / 15μm spec which is very suitable for the long range surveillance system.



Its shapes are various that can match different types of cryo coolers. Due to its flexible size, the C615M MWIR is very suitable to be integrated into the thermal security camera for secondary development, which will greatly save the time and cost for the OEM surveillance camera manufacturers.



In the field of security monitoring, we have close cooperation with major manufacturers at home and abroad, and have very mature experience in infrared thermal imaging solutions, which can shorten the development cycle and save costs for customers.



 Main Features



- Resolution: 640x512

- Pixel Pitch: 15μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C615M MW
Material MCT
Resolution 640x512
Pixel Pitch 15μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR)
Dynamic Range ≥75dB
Number of Output 4; Up to 10Mpixel/s per Output
NETD F2: ≤17mK
F4: ≤18mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046
Steady Power Consumption ≤6W@RS058
≤5W@RS046
Max Power Consumption ≤12W @ RS058
≤11W @ RS046
Power Supply RS058: 24V DC
RS046: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046
Weight ≤600g @ RS058
≤350g @ RS046
Dimension (mm) RS046: 122x46.3x82
RS058: 147x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615M MWIR is suitbale for the long range monitoring system and complex environments, such as scarcely populated area, 24/7 all weather monitoring, harsh weather place.

Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity 0



Our Infrared Thermal Imaging Solution


Ultra Compact MWIR Cooled Infrared Detector 640x512 / 15μm High Sensitivity 1


FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
