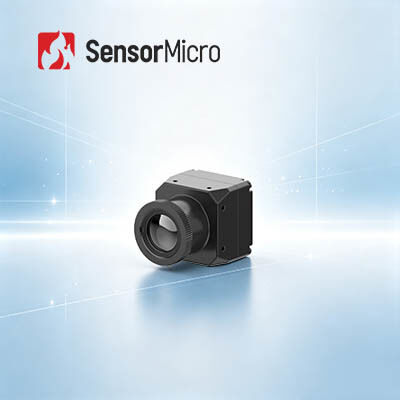

Uncooled Thermal Camera Module with 640x512 Resolution Low Power Consumption 0.7W and Compact Size 22.2×22.2×23.9mm

  • Uncooled Thermal Camera Module with 640x512 Resolution Low Power Consumption 0.7W and Compact Size 22.2×22.2×23.9mm
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number MICO608
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 /8μm NETD ≤30mK
Spectral Range 8~14μm Size (mm) 22.2×22.2×23.9 (With 6mm Lens)
Digital Video USB /MIPI Analog Video PAL(default) / NTSC
Highlight

IP67 Uncooled Thermal Camera Module

,

Intelligent Image Algorithm Thermal Camera Module

,

VOx Thermal Security Camera
Leave a Message
Product Description
Uncooled Thermal Camera Module with Various Intelligent Image Algorithm
Product Overview

LWIR Uncooled Thermal Camera Module for Thermal Security Camera

COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by SensorMicro. It integrates 400x300@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm. There are three types of lenses for COIN417G2 Thermal Module: fixed athermal 9.1㎜/13㎜/19㎜ lenses for different observation distances.

By using the WLP infrared detector and optimizing for SWaP (Size, Weight, and Power), the typical power consumption of COIN417G2 has been reduced by 50%, from 1.4W to 0.7W, while maintaining performance. Startup time is significantly reduced from 10s to 3.5s. The module guarantees IP67 protection level and passes ESD testing: contact discharge ±4KV, air discharge ±8KV.

The COIN417G2 infrared module features sharp, crisp thermal imaging, compact size, and low cost. It includes an optional thermographic function with measurement range from -20℃ to 550℃ for industrial temperature measurement (supports customization and expansion).

COIN417G2 thermal module meets remote temperature measurement requirements and can be integrated into various thermal cameras.

Main Features
Mainstream Compatibility, Cost-Effective
  • Equipped with ApexCore 640×512/8μm infrared detector, delivering clear thermal imaging with outstanding cost-performance
  • Integrated with a dedicated ASIC chip for high energy efficiency
Optimized SWaP Design
  • Sectional dimension: only 22.2×22.2×23.9mm (including a 6mm lens)
  • Weighing just 17±1.5g
  • Low power consumption: 680mW
Easy Development & Quick Integration
  • Native analog video or digital video output, supporting both CVBS/USB/MIPI standards—no additional development required
  • Easy mounting with minimal structural design effort
Product Specifications
Model MICO608
IR Detector
Sensitive Material VOx
Resolution 640×512
Pixel Size 8µm
NETD ≤30mK/F1.0/25℃
Spectral Response 8~14μm
Optical Lens
Focus/F# 3.2/F1.0 | 6mm/F1.0 | 8.7mm/F1.0
FOV 91°(H)×73°(V) | 47.7°(H)×38.2°(V) | 33°(H)×26°(V)
Detection Range (8 pixels) 99m (5'11" tall person)
360m (4m×3m vehicle)
Type Fixed Focus Athermal
First lens sealing/coating IP67
Image Processing
Analog Video PAL(default) / NTSC
Digital Video USB / MIPI
Frame Rate 25Hz/30Hz
Start-up Time ≤6s
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Pseudo Color 11 types - customizable
Electrical Interface
Standard External Interface 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51)
Video Interface CVBS | USB | MIPI
Power Supply
Supply Voltage DC: 5V~24V
Steady Power Consumption ≤680mW@5V, 23±3℃
Mechanical
Size 22.2mm×22.2mm×23.9mm (including a 6mm lens)
Weight 17±1.5g
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃～+85℃
Humidity 5%~95%, non-condensing
Vibration Random Vibration, 5.35grms, 3-axis
Impact Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Certification RoHS2.0/Reach
Industrial Applications

The MICO608 thermal module can be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, ADAS, and more.

Diverse Product Portfolio

A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.

Rich Product Variety

Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.

Outstanding Performance

Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.

Easy Integration

Multiple interface options make integration straightforward and enable rapid development across multiple application fields.

Frequently Asked Questions
Why is thermal imaging technology popular in night vision?
In the night vision industry, thermal imaging has outstanding advantages in long distance detection, concealment, and resistance to harsh imaging environments.
What are the advantages of infrared thermal imaging in vehicle vision systems?
Infrared thermal imaging vehicle vision systems are a type of ADAS system (advanced driving assistance system) that converts the infrared radiation of targets into infrared images visible to the naked eye. Infrared radiation occurs continuously and is not affected by external weather factors. Therefore, vehicle vision systems supported by thermal imaging technology are not affected by conditions such as night, rain, snow, haze, sand, and dust, and can present clear road images in front of the vehicle at all times, while also eliminating glare interference during head-on driving.
