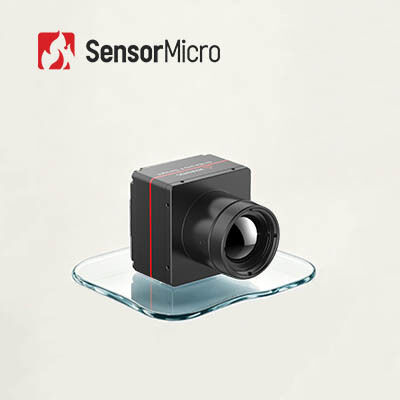

1280x1024 Resolution 12μm Pixel Size Uncooled LWIR Infrared Camera Module for All Weather Surveillance
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Used For | Surveillance Camera | Resolution | 1280x1024/12μm |
|---|---|---|---|
| Frame Rate | 25Hz/30Hz/50Hz | High Sensitivity | NETD≤30mK |
| Spectral Range | 8μm ~ 14μm | Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Highlight | MWIR Camera Module 1280x1024,All Weather MWIR Camera Module,100Hz MWIR Camera Module |
||
Product Description
All Weather Surveillance Uncooled LWIR Infrared Camera Module 1280x1024 12μm
High-Resolution Thermal Imaging Core
The iSE1212 high-resolution thermal camera module integrates a large array 1280x1024 / 12μm LWIR uncooled infrared detector with spectral range from 8~14μm, designed for long-range surveillance applications.
Key Features
- High-Definition Imaging: Megapixel thermal imaging with smooth, lag-free performance, wider field of view, larger angle coverage, and enhanced detail
- Shutterless Operation: No shutter calibration required during use, eliminating image stuttering and enabling silent operation
- Advanced Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
- Flexible Compatibility: Works with wide range of optical lenses and extended components for easy secondary development
Technical Specifications
| Model | iSE1212 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 1280×1024 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Effective Pixels | 1280×1024 | |
| Digital Frame Rate | 25Hz/30Hz/50Hz | |
| Start-up Time | 7s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Image Brightness | Auto/Manual | |
| Image Contrast | Auto/Manual | |
| Compensation Mode | Manual | |
| Reticle | Supported | |
| System Function | ||
| Sleep Mode | Supported | |
| Menu Setting | Customizable | |
| Menu Language | Chinese / English | |
| Offset calibration | Supported | |
| Keypads | ≥4(Button functions customizable) | |
| OLED Driving | Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen. |
|
| PC Software | ||
| Computer Software | Module Control & Video Display | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB | |
| Digital Video Interface | DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE | |
| Extension Components | USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 1.2W@25Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 38×39×28 | 68×69×30.2 |
| Bare Core Weight(g) | 65±3 | 88.5±3 |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm |
| Shutter Components | Optional | |
| Protection Level | IP67(Front Lens) | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Vibration | 5.35g, Random Vibration,, 3-axis | |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE1212 thermal infrared camera module is suitable for long-range monitoring systems and complex environments, including scarcely populated areas, 24/7 all-weather monitoring, and harsh weather conditions.
Frequently Asked Questions
What are the advantages of infrared thermal imaging in border surveillance?
- Supports long monitoring distance and wide range coverage
- All-weather monitoring during night and day
- Good monitoring concealment
- Unaffected by poor environmental conditions
- Medium-wave infrared especially suitable for rain and fog weather
- Long-wave infrared especially suitable for sand and dust weather
- Supports unattended operation to reduce staff workload
- Supports integration of automatic intrusion alarm function
- Supports network long-distance transmission for real-time image monitoring
