400x300 17μm Thermal Security Camera Core with LWIR Uncooled Infrared Detector

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number COIN417/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technology Infrared Material Vanadium Oxide
Resolution 400x300/17μm NETD <40mK
Spectral Range 8~14μm Temperature Accuracy ±3℃ Or ±3%
High Light

400x300 Thermal Security Camera Core

,

Thermal Security Camera Core LWIR

,

LWIR Uncooled Infrared Detector

Leave a Message
Product Description

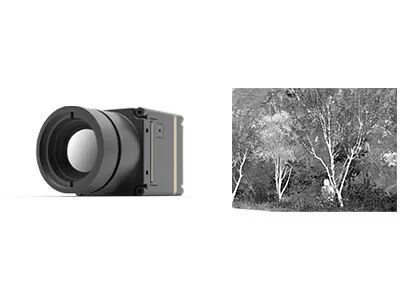

COIN417 Thermal Imaging Module



Security and Monitoring Thermal Camera Module with LWIR Uncooled Infrared Detector 400x300 / 17μm



Product Description



COIN417/R uncooled infrared module is specially designed for the thermal security camera. It integrates 400x300 / 17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm.



The COIN417/R infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.



Its lightweight and flexible features with various industry standard interfaces make it beneficial for OEM customers to conduct their secondary development and integration in all kinds of infrared thermal cameras in the field of security and surveillance, which greatly shorten their development time and save cost for them.



Main Features



- Mini Size: 25.4x25.4x14.1mm

- Light Weight

- NETD<40mk

- High Quality Image

- Low Power Consumption

- Rapid Development & Integration



Product Specifications



Model COIN417/R
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time ≤10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <1.1W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3℃ or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 25.4x25.4x14.1 (With Shutter)
Weight 13g±0.5g (Without Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 9.7mm/15mm/19mm



Industrial Applications



The COIN417/R thermal imaging module can be integrated into thermal security camera with close range and medium range monitoring and industrial temperature measurement, such as Box Camera, Speed Dome Camera, Dome Camera.



400x300 17μm Thermal Security Camera Core with LWIR Uncooled Infrared Detector 0



Our Infrared Products



400x300 17μm Thermal Security Camera Core with LWIR Uncooled Infrared Detector 1



FAQs



1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.



2. What are the advanyages of thermal imaging in the field of security and monitoring?

- Larger field of view and night vision distance of tens of kilometers
- Detect hidden fire in advance, and find fire danger earlier according to abnormal heat.
- Receive passive infrared radiation from the target without additional light
- Work normally in harsh environment such as smoke, haze, rain & snow, glare, strong light etc.
- Accurately distinguish human or animal through thermal distribution, detect camouflage in woods and other complex environment, reduce false alarm rate.
