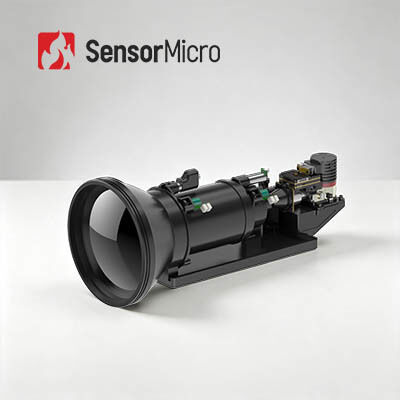

GAVIN GC615MA 640×512 Resolution 15μm Pixel Pitch Cooled MCT MWIR Thermal Security Camera with 16mK NETD
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615MA |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Detector Type | Cooled MCT IR Detector | Cryo Cooler | RS058 |
|---|---|---|---|
| Resolution | 640x512 | Pixel Pitch | 15μm |
| NETD | 16mK(F2);18mK(F4) | Mid Wavelength | 3.7~4.8μm MW |
| Highlight | GAVIN615B Thermal Security Camera,MCT Thermal Security Camera,MWIR Compact Camera Module |
||
Product Description
GAVIN GC615MA 640×512/15μm Integrated Thermal Security Camera MCT MWIR Compact Thermal Camera Module
Product Overview
The GAVIN GC615MA MWIR cooled infrared camera core is equipped with a self-developed 640×512/15μm MWIR detector and an RS058 low-temperature Stirling cryocooler.
Featuring built-in advanced AI image algorithms, this product offers a full range of specifications with excellent consistency and stability. It supports large-scale, reliable supply, fully meeting the needs of various industrial applications. Even in complete darkness or harsh weather conditions, the camera core delivers clear thermal images and accurate detection of both distant threats and close-range details.
Main Features
- Mainstream FPA, Broad Compatibility: Developed based on a 640×512/15μm MWIR cooled infrared detector, ensuring stable image quality with integrated next-generation image algorithms including DRC, 2D/3D noise reduction, and EE (edge enhancement) for clearer imaging
- High Reliability, High Sensitivity: Mid-wave cooled infrared ensures excellent versatility and consistency with high thermal sensitivity (NETD as low as 16mK)
- Easy Integration, Flexible Configuration: Cameralink video interface with RAW/YUV image data output and multiple continuous zoom optical configurations available
Product Specifications
| Model | GAVIN GC615MA |
|---|---|
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 16mK(F2) 18mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz/100Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0@50Hz Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤10W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 142×58.5×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 30~240mm/F4, 15~300mm/F4, 45~450mm/F4, 35~690mm/F4, 32~730mm/F4 |
Industrial Applications
The GAVIN GC615MA thermal infrared camera module is suitable for long-range monitoring systems and complex environments, such as scarcely populated areas, 24/7 all-weather monitoring, and harsh weather locations.
Our Advantages
- High sensitivity and excellent performance with world-leading technology in infrared industry
- Various infrared detectors available including both uncooled and cooled IR detectors in different formats and pixel sizes
- Volume production to ensure fast delivery with three production lines and annual production capability up to millions of detectors
Frequently Asked Questions
What is the difference between Cooled MCT & T2SL Detector?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier.
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment.
Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. It is not affected by changes in surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment.
Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. It is not affected by changes in surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot. However, infrared rays cannot penetrate walls, and glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
