LWIR 400x300 Thermal Imaging Security Camera Module Uncooled

I'm Online Chat Now

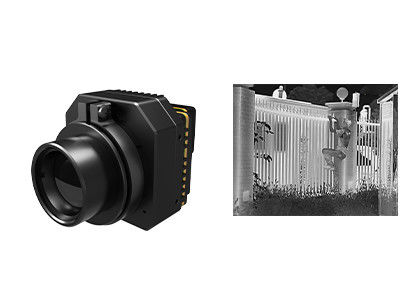

LWIR 400x300 Thermal Imaging Security Camera Module Uncooled

LWIR 400x300 Thermal Imaging Security Camera Module Uncooled
LWIR 400x300 Thermal Imaging Security Camera Module Uncooled

Large Image :  LWIR 400x300 Thermal Imaging Security Camera Module Uncooled

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Camera Module Resolution: 400x300 / 17μm
Frame Rate: 9Hz/25Hz/30Hz/50Hz/60Hz NETD: <30mK
Typical Power Consumption: <1.1W Weight: ≤77g
High Light:

400x300 Thermal Imaging Security Camera

,

LWIR Thermal Imaging Security Camera Module

PLUG417 Infrared Module



PLUG417 Uncooled LWIR 400x300 / 17μm Thermal Camera Module for Security and Monitoring



Product Description



PLUG417 is a kind of thermal module that is specially used for fast integration into thermal security camera. Consisted of 400x300 / 17µm uncooled thermal imaging sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG417 infrared camera module ensures clear image, smooth quality, superior performance and multiple lenses available.



PLUG417 IR thermal camera module provides a variety of industry common interfaces for the easy plug-in and integration into OME infrared surveillance cameras. We have some successful thermal imaging solutions to be applied into many applications.



The PLUG417 thermal core can be integrated into security camera with temperature monitoring from short distance to ultra distance. It is suitable for customers who produce security and monitoring camera with pursuit of high requirements for image and temperature measurement, strong and reliable performance.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Typical Power Consumption <1.1W
Physical Characteristics
Dimension (mm) 44.5mmx44.5mmx36.6mm
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm



Industrial Applications



The PLUG417 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.



LWIR 400x300 Thermal Imaging Security Camera Module Uncooled 0



Honors & Certificates



LWIR 400x300 Thermal Imaging Security Camera Module Uncooled 1

FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
