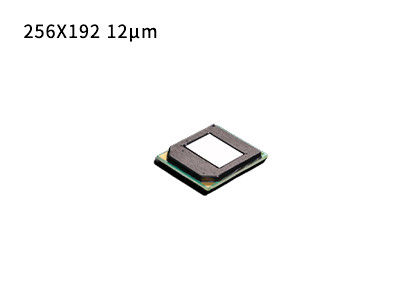

Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics

I'm Online Chat Now

Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics

Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics
Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics

Large Image :  Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST212W
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Microbolometer Material: Vanadium Oxide
Resolution: 256x192 Spectral Range: 8~14μm
Pixel Pitch: 12μm NETD: <40mK
Weight: <1.5g Size: 16x14x2.6mm
High Light:

Miniature Uncooled Ir Detector

,

Uncooled Ir Detector 256x192

About GST212W Thermal Detector



Miniature 256x192 / 12μm Uncooled Microbolometer LWIR Infrared Detector for Consumer Electronics



Product Description



GST212W is one of the Wafer Level Packing (WLP) uncooled thermal detectors developed by Global Sensor Technology (GST). This vanadium oxide (VOx) microbolometer detector covers long wavelength from 8 to 14μm. And its resolution is 256x192 with pixel size at 12μm.



The GST212W long wave infrared focal plane array (FPA) detector is specially developed for optimized size, weight, power, cost (SWaP-C), which has achieved high volume production with annual output up to 1,000,000 pieces.



Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for WLP thermal sensors developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Light Weight: <1.5g

- Small Size: 16x14x2.6mm

- Low Power Consumption

- Affordable Price

- Fast supply and delivery chain



Product Specifications



Model GST212W
Material VOx
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8-14μm
NETD <40mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Dimension (mm) 16x14x2.6
Weight <1.5g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST212W uncooled microbolometer detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, UAVs Payload, Epedemic Prevention, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics 0



Our Advantages



Miniature Uncooled IR Detector 256x192 / 12μm For Consumer Electronics 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
