EYAS G1010HMG 1024×768 Resolution 10μm Pixel Pitch Cooled HOT Infrared Module for Fast Integration
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | EYAS G1010HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1024×768 | Pixel Pitch | 10μm |
|---|---|---|---|
| NETD | 20mK(F2); 25mK(F4) | Spectral Range | 3.7~4.8μm MW |
| Size | 72×87×51mm | Frame Rate | 1~100Hz Adjustable |
| Highlight | EYAS 1212 IR Camera Core,1280x1024 IR Camera Core,12um Integration Cooled Camera Modules |
||
Product Description

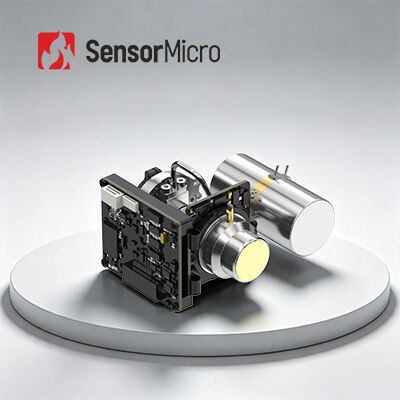

EYAS G1010HMG 1024×768/10μm Cooled HOT Infrared Module for Fast Integration
Product Overview
The EYAS G1010HMG cooled AD module consists of a 1024×768/10μm HOT cooled infrared detector and an AD circuit board, equipped with an RS046 rotary Stirling cryocooler. It converts the analog output signal of the cooled infrared detector into a digital video stream, while also providing drive power and control timing.
This module helps OEM customers quickly test and verify detectors, simplifies the integration process between cooled infrared detectors and complete systems, and significantly accelerates development progress. HOT (Operating temperature up to 150K) modules boast optimized Size, Weight, and Power (SWaP) and reliability, which is ideal for lightweight applications that require high stability.
Main Features
- Large Format, Small Pixel: Developed based on a 1024×768/10μm large-format, small-pixel HOT MWIR cooled infrared detector, delivering more delicate imaging details
- Integrated AD Circuit: Analog-to-digital conversion enables quick platform integration with dimensions consistent with the detector
- HOT Technology, SWaP-C Optimization: Focal plane operating temperature raised to 150K with minimum size ≤72×87×51mm, weight as low as 250g, and power consumption down to 6W
- Outstanding Performance: Adjustable frame rate from 1-120 Hz, capable of capturing fast-moving targets
- Camera Link Interface: Outputs 16-bit raw data with serial port control
Product Specifications
| Model | EYAS G1010HMG |
|---|---|
| Resolution | 1024×768 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Frame Rate | 1~100Hz, adjustable (50Hz by default) |
| Working Mode | Snapshot, ITR/IWR Integration Modes, Anti-blooming, Windows Mode |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink (CameraLink DualBase mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART (Default)/ RS232 (customizable) Baud rate: 9600bps (Default) |
| Power Supply | AD Board: 5V Cryocooler: 12V |
| Steady Power (23℃) | ≤6W |
| Cooling Time(23℃) | ≤3min |
| Size(mm) | 72×87×51 |
| Weight(g) | ≤250 |
| Operating Temperature | -40℃~+71℃ |
Industrial Applications
The EYAS G1010HMG thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references for getting started without guesswork
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
- Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
- Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
1. Classification of Infrared Focal Plane Arrays (FPA)
According to the cooling method, infrared focal plane arrays can be divided into cooled and uncooled thermal imaging detectors. The cooled FPA infrared detector mainly adopts Dewar bottle/quick start throttling refrigerator and Dewar bottle/Stirling cycle refrigerator. While the uncooled FPA thermal IR detector works at room temperature and is the core of uncooled thermal imaging systems. The most common heat-sensitive materials include vanadium oxide (Vox) and amorphous silicon (a-Si). Vanadium oxide material is the mainstream choice in the current market due to its high temperature resistance coefficient and high thermal sensitivity.
2. Working Principle of Infrared Focal Plane Array
An array of photosensitive elements is arranged on the focal plane array detector. Infrared rays emitted from infinity are imaged on these photosensitive elements of the focal plane array through the optical system. The detector converts the light signal into an electrical signal and performs integral amplification, sampling, output buffer and multiplexing system, and is finally sent to the monitoring system to form an image.
