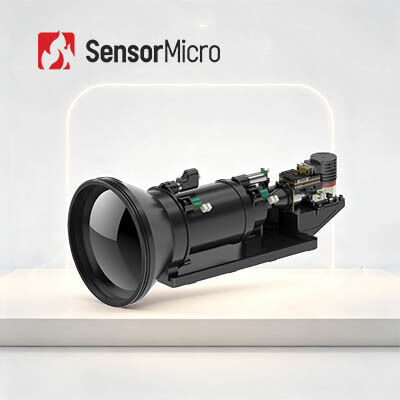

High Frame Rate 640x512 Resolution Cooled MWIR Thermal Imaging Module with 16mK NETD

  • High Frame Rate 640x512 Resolution Cooled MWIR Thermal Imaging Module with 16mK NETD
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Cooled Thermal Camera Module Weight ≤680g
Resolution 640x512/15μm IR Detector NETD (23℃) 16mK(F2);18mK(F4)
Size 142×58.5×80mm Mid Wavelength 3.7~4.8μm
Highlight

MWIR Thermal Imaging Module

,

High Frame Rate Thermal Imaging Module
Leave a Message
Product Description
High Frame Rate Cooled 640x512/15μm MWIR Thermal Imaging Module
Product Overview

High Frame Rate Cooled 640x512/15 μm MWIR Thermal Imaging Module with RS058 Cryo Cooler

GAVIN GC615MA is a cooled mid wave thermal imaging module. It consists of a 640x512/15µm MWIR infrared detector with RS058 low-temperature Stirling cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.

Various image processing algorithms are already embedded in the GAVIN GC615MA electronics to output clear infrared images in total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while presenting more target details at short distance.

When integrated with 640x512 / 15µm cooled MWIR infrared detector, the frame rate of GAVIN GC615MA can be configured up to 100Hz, which is very suitable for applications that require observation of fast moving objects.

We specialize in the design, manufacture, sales and marketing of infrared thermal detectors and thermal camera cores. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.

Main Features
  • Mainstream FPA, Broad Compatibility
    • Developed based on a 640×512/15μm MWIR cooled infrared detector, ensuring stable image quality
    • Integrated next-generation image algorithms including DRC, 2D/3D noise reduction, and EE (edge enhancement) for clearer imaging
  • High Reliability, High Sensitivity
    • Mid-wave cooled infrared ensures excellent versatility and consistency
    • High thermal sensitivity with NETD as low as 16mK
  • Easy Integration, Flexible Configuration
    • Cameralink video interface with RAW/YUV image data output
    • Multiple continuous zoom optical configurations available
Product Specifications
Model GAVIN GC615MA
Indicators
Resolution 640×512
Pixel Size 15μm
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 16mK(F2)
18mK(F4)
Image Processing
Frame Rate 50Hz/100Hz
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Analog Video PAL/NTSC
Digital Video Standard: DVP/LVDS/USB2.0@50Hz
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤10W
Cooling Time(23℃) ≤8min
Size(mm) 142×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Optical Lens
Lens Options Fixed focus: 25mm/F2
Continuous zoom: 30~240mm/F4, 15~300mm/F4, 45~450mm/F4, 35~690mm/F4, 32~730mm/F4
Industrial Applications
  • NDT (Non-Destructive Testing)
  • Environmental Monitoring
  • Long-Range Surveillance
  • Scientific Research
Standardized Service
Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. What are the key considerations on an infrared detector / thermal module for your application?
  • The detector resolution
  • The pixel size
  • The NETD
  • The image quality
  • The lens options
  • The power consumption
  • The size and weight
  • The mechanical & electrical interface
  • The budget
3. How to choose a suitable infrared thermal camera lens?
  • Standard lens can meet normal targets with appropriate distance
  • For the telephoto lens, it's suitable for targets that is relatively small and needs to be viewed from a long distance
  • To see more detail of objects at close distance, wide angle lens is better
  • Macro lens is for seeing very tiny target with close distance, such as chip circuit
