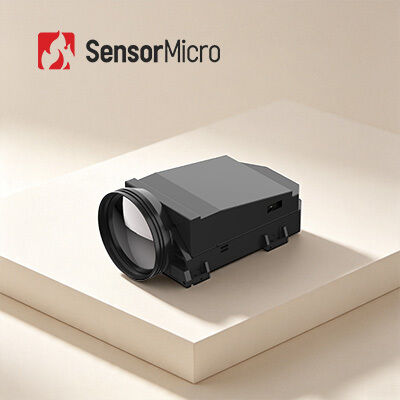

1280x1024 Resolution 12μm Pixel Size Cooled Infrared Camera Core with 18mK NETD for Ultra Clear Thermal Imaging

  • 1280x1024 Resolution 12μm Pixel Size Cooled Infrared Camera Core with 18mK NETD for Ultra Clear Thermal Imaging
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Technology MCT / HgCdTe Resolution 1280x1024 / 12μm
NETD 18mK(F2/F4) Spectral Range 3.7~4.8μm
Size 149×58.5×80mm Weight ≤680g
Highlight

1280x1024 Cooled Camera Modules

,

1600g Cooled Camera Modules
Leave a Message
Product Description
Large Array 1280x1024 / 12μm Cooled Infrared Camera Core for Ultra Clear Thermal Imaging
Product Overview

GAVIN GC1212MA high resolution thermal camera module features a large array 1280x1024/12μm MWIR detector with detector dewar cooler (DDC) technology. Advanced image processing algorithms deliver clear infrared images in total darkness or adverse weather conditions, enabling long-range threat detection and detailed short-range target analysis.

As part of the GAVIN GC series standard cooled infrared modules, this product offers various resolution formats, wave bands, and continuous optical lens options to meet diverse application requirements.

Main Features
  • Megapixel Resolution, Exceptional Image Quality - 1280×1024/12μm mid-wave cooled infrared detector with advanced image processing including DRC, 2D/3D noise reduction, and edge enhancement
  • High Reliability, Superior Sensitivity - Mid-wave cooled thermal imaging technology with NETD as low as 18mK
  • Easy Integration, Flexible Configuration - CameraLink interface with RAW/YUV image data output and multiple continuous zoom optical configurations
Technical Specifications
Model GAVIN GC1212MA
Resolution 1280×1024
Pixel Size 12μm
Cryocooler RS058
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD (23℃) 18mK (F2/F4)
Frame Rate 50Hz
Power Supply 24V±4V
Steady Power Consumption (23℃) ≤11W
Cooling Time (23℃) ≤8min
Dimensions 149×58.5×80 mm
Weight ≤680g
Operating Temperature -40℃~+71℃
Lens Options Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications

The GAVIN GC1212MA thermal infrared camera module is widely used in:

  • Non-Destructive Testing (NDT)
  • Environmental Monitoring
  • Long-Range Surveillance
  • Scientific Research
Our Advantages
  • Deep Technical Expertise - Comprehensive capabilities across chip design, wafer fabrication, packaging, testing, and system integration
  • Focused Innovation - Continuous technological breakthroughs in NETD, SWaP, and operating temperature parameters
  • Diversified Product Portfolio - Comprehensive range of both cooled and uncooled infrared detection components
  • Rigorous Reliability Validation - Robust quality management system with multiple testing procedures
  • Professional Technical Support - Collaborative engineering support to accelerate system integration and reduce time-to-market
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
Our thermal camera modules serve multiple industries including:
  • Thermography - Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring - Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue - Forest Fire Prevention, Fire Prevention, Search & Rescue
  • Personal Vision - Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS - Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT - Smart Home, Intelligent Hardware, Smart Care, Robots
  • Other Applications - Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
