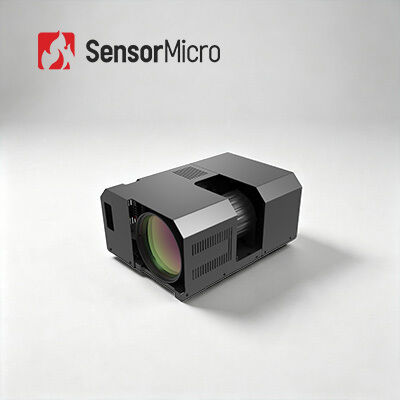

GAVIN GC1212MA 1280×1024 Resolution 12μm Pixel Pitch MWIR Cooled Thermal Imaging Module with 18mK NETD
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC1212MA |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280×1024 | Pixel Pitch | 12μm |
|---|---|---|---|
| High Sensitivity | IR Detector NETD 18mK(F2/F4) | Spectral Range | 3.7μm±0.2μm～4.8μm±0.2μm |
| Type | Cooled Camera Module | Performance | Stable |
| Highlight | GAVIN615L Cooled Thermal Imaging Module,Cooled Thermal Imaging Module,LWIR Cooled Thermal Imaging Module |
||
Product Description
GAVIN GC1212MA Easy Integration 1280*1024/12μm MWIR Cooled Thermal Imaging Module
Product Overview
The GAVIN GC1212MA HD MWIR cooled infrared camera core utilizes a self-developed 1280*1024/12μm cooled MWIR infrared detector. It features four times the pixel count of standard 640*512 detectors at the same imaging area, offering a wider field of view and richer imaging details. Supported by various image processing algorithms, the infrared camera core outputs high-definition thermal images directly and performs outstandingly for all-weather target detection under diverse visibility and harsh environmental conditions.
Main Features
- Megapixel Resolution, Exceptional Image Quality
Powered by a 1280*1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity. - High Reliability, Superior Sensitivity
Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD as low as 18mK. - Easy Integration, Flexible Configuration
Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.
Product Specifications
| Model | GAVIN GC1212MA |
| Resolution | 1280*1024 |
| Pixel Size | 12μm |
| Cryocooler | RS058 |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 18mK(F2/F4) |
| Frame Rate | 50Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1* to 8* continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Standard External Interface | J30JZ 25-pin HDMI Dedicated Output Interface |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤11W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 149*58.5*80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Vibration | Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction |
| Lens Options | Fixed focus: 19mm/F2 Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4 |
Industrial Applications
The GAVIN GC1212MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
Our Advantages
- Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support—quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What are the advantages of uncooled infrared detectors?
Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.
What are the key considerations on an infrared detector / thermal module for your application?
• The detector resolution
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget
