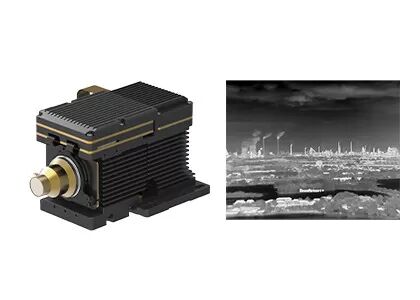

MCT MWIR Mid Wave Cooled Thermal Imaging Module 640x512 15μM

Fast Integration MCT MWIR Cooled Thermal Module Into Drones 640x512 15μM

GAVIN615B is a cooled mid wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 640x512 / 15µm HgCdTe MWIR IR detector with RS046 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.

Configured with RS046 cryocooler, the GAVIN615B is very compact in size, measuring 125x92x67mm in dimension and weighing less than 650g in weight. It’s stable power consumption is as low as 12w. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN615B thermal imaging module.

- High Sensitivity, NETD≤20mK

- Long Range Detection

- Adjustable Frame Rate

- Easy Integration into the System

The GAVIN615B thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1. Working Principle of Optical Gas Imaging

The optical gas imaging camera can quickly detect the gas without temporarily stopping the production line by identifying the infrared radiation difference between the gas and the background and visualizing the gas whether the leakage exists, and accurately locate the leakage source.

2. Application of Optical Gas Imaging

The development and integration of optical gas imaging solution based on GST infrared detectors & thermal modules have very mature and widely applied in various industries to solve various gas leakage problems for customers, such as petroleum, natural gas, chemical industry, electric power and environmental protection monitoring, and making great contribution to environmental protection, energy conservation, safe production and occupational health.
