MCT MWIR Cooled Thermal Imaging Module with 640x512 Resolution 15μm Pixel Size and 20mK NETD Sensitivity

  • MCT MWIR Cooled Thermal Imaging Module with 640x512 Resolution 15μm Pixel Size and 20mK NETD Sensitivity
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615MB
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 15μm IR Detector NETD (23℃) 20mK(F4); 25mK(F5.5)
Spectral Range 3.7~4.8μm MW Frame Rate 50Hz/100Hz
Size 120×84×60mm Weight ≤440g
Highlight

Cooled Thermal Imaging Module 640x512

,

MCT Mid Wave Thermal Imaging Module
Leave a Message
Product Description
MCT MWIR Mid Wave Cooled Thermal Imaging Module 640x512 15μm
Fast Integration MCT MWIR Cooled Thermal Module 640x512 15 μm

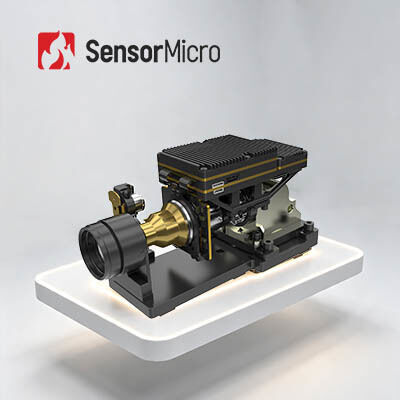

The GAVIN GC615MB MWIR cooled infrared core integrates a 640×512/15μm MWIR detector with an RS046 low-temperature Stirling cryocooler. It features built-in image processing algorithms and offers a comprehensive range of specifications with excellent consistency, fully meeting the demands of large-scale industrial applications.

Even in complete darkness or harsh weather conditions, the camera core delivers clear thermal images and accurate detection of both distant threats and close-range details. Ideal for security, surveillance, and monitoring scenarios, the GAVIN GC615MB infrared camera core provides reliable technological support across diverse environments.

It provides various lenses for customers to choose from: Fixed focus lens 25mm/F2; continuous zoom lens 15~300mm/F4, 23~450mm/F4.

Main Features
  • Mainstream FPA, Broad Compatibility: Powered by a 640×512/15μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity.
  • High Reliability, Superior Sensitivity: MWIR cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD ≤ 20mK.
  • Easy Integration, Flexible Configuration: Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.
Product Specifications
Model GAVIN GC615MB
Resolution 640×512
Pixel Size 15μm
Cryocooler RS046
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 20mK(F4)
25mK(F5.5)
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Standard External Interface J30JZ25 25PIN
Analog Video PAL/NTSC
Digital Video Standard: DVP/LVDS/USB2.0@50Hz
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤10W
Cooling Time(23℃) ≤8min
Size(mm) 120×84×60
Weight(g) ≤440
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Optical Lens Fixed focus: 25mm/F2
Continuous zoom: 15~300mm/F4 23~450mm/F4
Industrial Applications
  • NDT (Non-Destructive Testing)
  • Environmental Monitoring
  • Long-Range Surveillance
  • Scientific Research
Customized Service
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
Working Principle of Optical Gas Imaging

The optical gas imaging camera can quickly detect gas without temporarily stopping the production line by identifying the infrared radiation difference between the gas and the background. It visualizes whether gas leakage exists and accurately locates the leakage source.

Application of Optical Gas Imaging

The development and integration of optical gas imaging solutions based on SensorMicro infrared detectors & thermal modules are mature and widely applied across various industries. These solutions solve gas leakage problems in petroleum, natural gas, chemical industry, electric power, and environmental protection monitoring, making significant contributions to environmental protection, energy conservation, safe production, and occupational health.
