Long Range Detection Cooled IR Thermal Module Core with 1280x1024 Resolution and 12μm Pixel Pitch

  • Long Range Detection Cooled IR Thermal Module Core with 1280x1024 Resolution and 12μm Pixel Pitch
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
High Definition 1280x1024 Pixel Pitch 12μm
Frame Rate 50Hz NETD 18mK(F2/F4)
Cryocooler RS058 Spectral Range 3.7~4.8μm MW
Highlight

IR Detector Module Core 12um

,

IR Detector Module 1280x1024
Leave a Message
Product Description

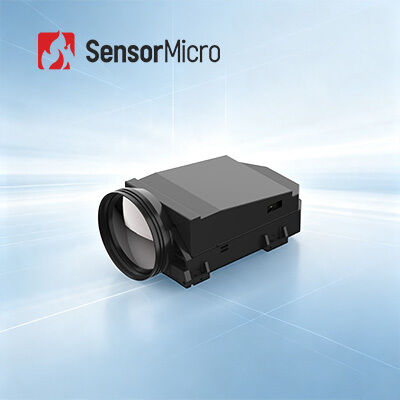

Long Range Detection Cooled IR Thermal Module Core 1280x1024 12μm
Product Overview

The GAVIN GC1212MA HD MWIR cooled infrared camera core features a self-developed 1280×1024/12μm MWIR cooled detector, providing four times the pixel count of a conventional 640×512 detector within the same active image area. This enables a wider field of view and reveals more image details.

Equipped with multiple image processing algorithms, it delivers high-definition images directly, suitable for all-weather target detection under various visibility conditions and harsh environments. It can detect and recognize risks and threats at long distance while presenting more target details at short distance.

With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.

Main Features
  • Megapixel Resolution, Exceptional Image Quality - Powered by a 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity.
  • High Reliability, Superior Sensitivity - Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD as low as 18mK.
  • Easy Integration, Flexible Configuration - Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.
Product Specifications
Model GAVIN GC1212MA
Resolution 1280×1024
Pixel Size 12μm
Cryocooler RS058
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 18mK(F2/F4)
Frame Rate 50Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Standard External Interface J30JZ 25-pin HDMI Dedicated Output Interface
Analog Video PAL/NTSC
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤11W
Cooling Time(23℃) ≤8min
Size(mm) 149×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Optical Lens Options Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications

The GAVIN GC1212MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

IR Detection Solutions
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel size
  • Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
1. Working Principle of Optical Gas Imaging

The optical gas imaging camera can quickly detect gas without temporarily stopping the production line by identifying the infrared radiation difference between the gas and the background. It visualizes whether gas leakage exists and accurately locates the leakage source.

2. Application of Optical Gas Imaging

The development and integration of optical gas imaging solutions based on SensorMicro infrared detectors & thermal modules are mature and widely applied across various industries. These solutions address gas leakage problems in petroleum, natural gas, chemical industry, electric power, and environmental protection monitoring, making significant contributions to environmental protection, energy conservation, safe production, and occupational health.
