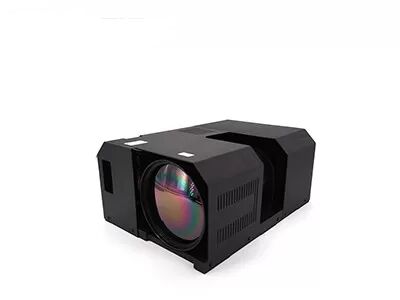

Long Range Detection Cooled IR Detector Module Core 1280x1024 12μm
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|High Definition||1280x1024||Pixel Pitch||12μm|
|Size||165x86x107mm||Spectral Range||3.7~4.8μm MW|
IR Detector Module Core 12um,
IR Detector Module 1280x1024
Long Range Detection Cooled IR Detector Module Core 1280x1024 12μM
GAVIN1212 high resolution thermal camera module integrates large array 1280x1024/12μm cooled MWIR detector. Various image processing algorithms are embedded in the GAVIN1212 electronics to output clear infrared images in the total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while present more target details at short distance.
With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission. It is ideal choice for the EO-IR systems integrator to design their payload for air-borne or ship-borne applications.
Mega Pixel Images
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution
Sharp Clear Quality
• Good uniformity, effective pixel rate＞99.5%
• High sensitivity, NETD≤20mK
• Support Cameralink interface, RAW/YUV image data output
• Various continuous zoom optical configurations are optional
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin; HDMI Special Output Interface|
|Digital Video||HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV
Frame External Sync: RS422
|Stable Power Consumption||16W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2
The GAVIN1212 thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. Working Principle of Optical Gas Imaging
The optical gas imaging camera can quickly detect the gas without temporarily stopping the production line by identifying the infrared radiation difference between the gas and the background and visualizing the gas whether the leakage exists, and accurately locate the leakage source.
2. Application of Optical Gas Imaging
The development and integration of optical gas imaging solution based on GST infrared detectors & thermal modules have very mature and widely applied in various industries to solve various gas leakage problems for customers, such as petroleum, natural gas, chemical industry, electric power and environmental protection monitoring, and making great contribution to environmental protection, energy conservation, safe production and occupational health.
