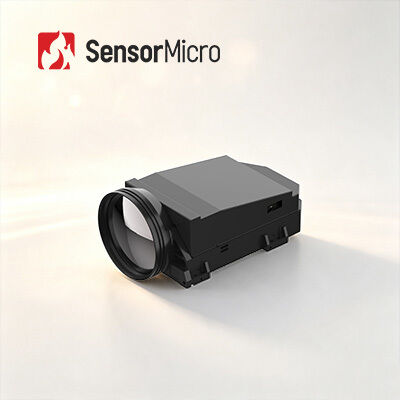

1280x1024 Resolution 12μm Pixel Pitch Cooled IR Camera Module for Long Range Monitoring

  • 1280x1024 Resolution 12μm Pixel Pitch Cooled IR Camera Module for Long Range Monitoring
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
High Definition 1280x1024 Pixel Pitch 12μm
Frame Rate 50Hz NETD 18mK(F2/F4)
Size 149×58.5×80mm Spectral Range 3.7~4.8μm MW
Highlight

IR Cooled Camera Module Core

,

1280x1024 Camera Module Core

,

IR Cooled Camera Modules 12um
Leave a Message
Product Description
Long Range Monitoring IR Cooled Camera Module Core 1280x1024 12μm
Product Overview

GAVIN GC1212MA high resolution thermal camera module integrates large array 1280x1024/12μm cooled MWIR detector. Various image processing algorithms are embedded to output clear infrared images in total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while presenting more target details at short distance.

With large array 1280x1024 resolution, it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission. Ideal for systems integrators designing custom applications.

Main Features
  • Megapixel Resolution, Exceptional Image Quality
    • Powered by 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging
    • Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity
  • High Reliability, Superior Sensitivity
    • Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency
    • Outstanding thermal sensitivity with NETD as low as 18mK
  • Easy Integration, Flexible Configuration
    • Supports CameraLink interface with RAW/YUV image data output
    • Multiple continuous zoom optical configurations available for different needs
Product Specifications
Model GAVIN GC1212MA
Resolution 1280×1024
Pixel Size 12μm
Cryocooler RS058
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 18mK(F2/F4)
Frame Rate 50Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Standard External Interface J30JZ 25-pin HDMI Dedicated Output Interface
Analog Video PAL/NTSC
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤11W
Cooling Time(23℃) ≤8min
Size(mm) 149×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Lens Options Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications

The GAVIN GC1212MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.

IR Detection Solutions
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available - both uncooled and cooled IR detectors in different formats and pixel sizes
  • Volume production to ensure fast delivery - three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
Advantages of Optical Gas Imaging
  • Time-saving & Efficient: Support large-scale real-time detection, rapid leak location, no need for interrupting production
  • Long Range Detection: Away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
  • Easy to Analyze: Intuitive imaging, instant storage, convenient analysis
  • Multi-function Inspection: Variety of gases can be detected, with excellent remote temperature measurement function
Working Principle of Optical Gas Imaging

Optical gas imaging is a type of infrared technology that enables visualization of invisible industrial gases. After absorbing infrared radiation at specific wavelengths, infrared radiation differences occur between the gas and the background. The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
