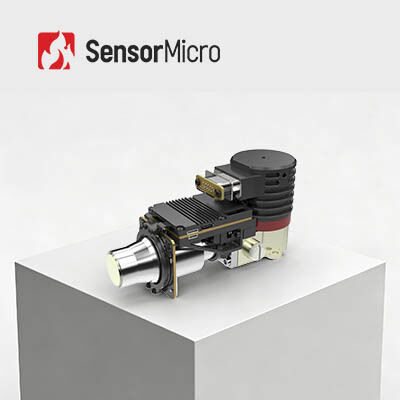

320x256 Resolution 30μm Pixel Size Cooled Infrared Camera Core for CO2 Gas Leak Detection

During carbon capture, power equipment operation, and industrial production, CO₂ leaks not only jeopardize carbon reduction targets but can also cause equipment faults due to long-term accumulation of carbon dioxide. Traditional detection methods are often "invisible, unsafe, and prone to omissions", making accurate detection challenging.

The LFM330Z6 gas leak detection infrared camera core is developed based on the self-designed LFD330Z6 detector, operating in the 4.2-4.4μm spectral band. Specifically engineered for ultra-low concentration CO₂ leak detection, it enables long-range, non-contact, and visualized monitoring with high sensitivity and intuitive recognition—effectively overcoming the limitations of traditional methods in identifying trace CO₂ leaks.

• High Sensitivity, Precise Leak Localization
  • Developed based on the self-designed LFD330Z6 detector, suitable for CO₂ and gases within the same spectral band
  • NETD as low as 10mK, enabling precise detection of small leaks at long distances
• Enhanced Imaging with Gas-Enhancement Algorithm
  • Equipped with a gas-enhancement HSM algorithm, making even subtle leaks clearly visible
• Rich Interfaces, Easy Integration
  • Fully self-developed core components with RAW/YUV image output, ensuring seamless system integration
  • CO₂ can be used as a tracer gas for indirect hydrogen leak detection, further expanding the application boundaries of the device

The LFM330Z6 gas leak detection thermal imaging camera is used for visualizing invisible CO2 gas leakage in industrial areas such as Petrochemical, Natural Gas, Power & Energy, Scientific Research, Environmental Protection, and more.

Focusing on infrared thermal imaging technology and driven by user needs, SensorMicro is committed to the in-depth development and continuous improvement of infrared products and application solutions.

In the field of gas leak detection, we have launched a series of infrared detectors and thermal modules from medium to long wave gas leak detection based on the spectral characteristics of different gases. Integrators can quickly develop various gas leak detection system solutions such as handheld devices and online monitoring systems based on our product portfolio and application solutions, ensuring environmental protection, energy efficiency, and safety production across industries such as petroleum, natural gas, chemical, power, and environmental monitoring.

• Time-saving & Efficient: Support large-scale real-time detection, rapid leak location, no need for interrupting production
• Long Range Detection: Away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
• Easy to Analyze: Intuitive imaging, instant storage, convenient analysis
• Multi-function Inspection: A variety of gases can be detected, with excellent remote temperature measurement function

Optical gas imaging is a type of infrared technology that can visualize invisible industrial gases. After absorbing infrared radiation at specific wavelengths, infrared radiation difference will occur between the gas and the background. The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
