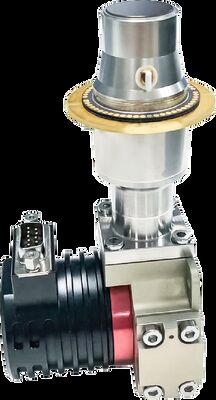

320x256/30μm Pixel Size MWIR Cooled Infrared Detector with 10mK NETD for Optical Gas Imaging
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS; Reach |
| Model Number | LFD330Z7 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Size | 30μm | Function | Gas Leak Detection |
|---|---|---|---|
| NETD | 10mK (F1.5) | Cooling Time (23 ℃) | ≤7min@12V |
| Detector Resolution | 320x256 | Spectral Range | 4.5±0.1μm～4.7±0.1μm |
| Highlight | 320x256 Cooled Infrared Detector,30um MWIR Cooled Infrared Detector,Mwir Gas Imaging Module |
||
Product Description
320x256/30μm Optical Gas Imaging MWIR Cooled Infrared Detector
Product Overview
The LFD330Z7 infrared detector for gas leak detection provides advanced optical gas imaging capabilities. It rapidly scans large areas, accurately locates leak sources from a distance, and delivers clear imaging to help inspection personnel efficiently identify potential hazards and ensure operational safety.
Main Features
- High sensitivity and reliability
- High effective pixel rate
- Clear visualization of minor leaks
- Gas enhanced HSM algorithm support (for module)
- Easy integration with various interfaces
- RAW/YUV image output support
Product Specifications
| Detector model | LFD330Z7 |
| Resolution | 320*256 |
| Pixel size | 30μm |
| Spectral response | 4.5±0.1μm～4.7±0.1μm |
| Typical NETD | 10mK (F1.5) |
| Cooling time (23℃) | ≤7min@12V |
| Power consumption (23℃) | ≤15W@12V (Peak) ≤7W@12V (Stable) |
| Size (mm) | 142*58.5*71 |
| Weight (g) | ≤600g |
| Working temperature | -45℃～+71℃ |
| Storage temperature | -55℃～+71℃ |
| MTTF | ≥10000h |
Industrial Applications
The LFM330Z7 cooled MWIR infrared camera core is widely used across industries where CO leaks present significant risks:
- Petrochemical industry: Monitoring CO leaks during hydrocarbon combustion, catalytic reforming, and gas storage processes
- Metallurgical industry: Detection during steelmaking and non-ferrous metal smelting where incomplete fuel combustion generates CO
- Residential and commercial buildings: Identifying CO leaks from gas water heaters, furnaces, and boilers
- Scientific research and environmental monitoring: Studying CO emission mechanisms and tracking atmospheric CO distribution
Standardized Service
Complete Documentation: Product manuals, setup guides, and selection references for seamless implementation
Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification
Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects. By detecting radiation differences between objects and their background environment, as well as variations within the objects themselves, infrared thermal images display radiation fluctuations that reveal scene characteristics.
What are the advantages of infrared thermal imaging?
- See through total darkness
- Identification under camouflage
- Long range detection
- Heat distribution detection
- Non-contact temperature measurement
- Occupation awareness
What are the applications of infrared thermal imaging?
Temperature measurement and all-weather imaging are the two fundamental functions of infrared thermal imaging technology. Products developed using these technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment, and other traditional fields.
