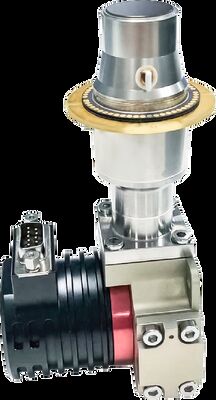

320x256/30μm MWIR Cooled Thermal Imaging Detector with 10mK NETD for Optical Gas Imaging

  • 320x256/30μm MWIR Cooled Thermal Imaging Detector with 10mK NETD for Optical Gas Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFD330Z6
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Gas Leak Detection Size (mm) 142×58.5×71
Detector Resolution 320x256 Pixel Size 30μm
NETD 10mK (F1.5) Spectral Range 4.2±0.1μm～4.4±0.1μm
Highlight

MWIR Cooled Thermal Imaging Sensor

,

320x256 Thermal Imaging Sensor

,

MWIR Optical Gas Imaging Sensor
Leave a Message
Product Description

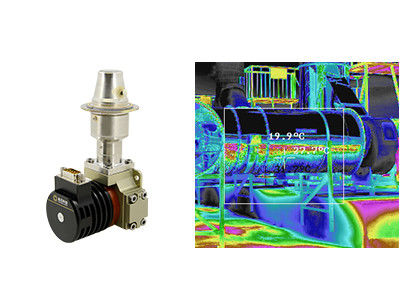

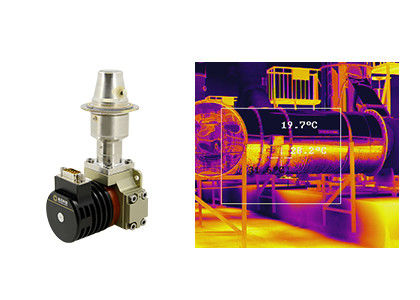

MWIR Cooled Thermal Imaging Sensor 320x256 30μm for Visualizing Gas Leaks
320x256 / 30 μm MWIR Cooled Optical Gas Imaging Camera
In carbon capture, power equipment operation, and industrial production processes, CO₂ leakage not only leads to the failure of carbon reduction targets, but long-term accumulation may also cause equipment failures. Traditional detection methods are invisible, unsafe, and prone to omission, making it difficult to achieve accurate detection.
The LFD330Z6 infrared detector for gas leak detection provides high-precision and sensitive detection. It professionally targets extremely low concentration CO₂ leakage scenarios, achieving non-contact, long-distance, and visual leakage positioning to overcome the shortcomings of traditional detection methods. Additionally, CO₂ can be used as a tracer gas for indirect detection of hydrogen gas, further expanding the equipment's application scenarios.
Main Features
  • Optical Gas Imaging - Long range non-contact detection with high efficiency, security and wide range gas leak detection
  • Clear Detection of Leaks - High effective pixel rate, equipped with gas enhanced HSM algorithm (for module)
  • Easy Integration - Support for various interfaces and RAW/YUV image output
Product Specifications
Detector model LFD330Z6
Resolution 320×256
Pixel size 30μm
Spectral response 4.2±0.1μm～4.4±0.1μm
Typical NETD 10mK (F1.5)
Cooling time (23 ℃) ≤7min@12V
Power consumption (23 ℃) ≤15W@12V (Peak)
≤7W@12V (Stable)
Size (mm) 142×58.5×71
Weight (g) ≤600
Working temperature -45℃～+71℃
Storage temperature -55℃～+71℃
MTTF ≥10000h
*MTTF: Mean Time to Failure
Industrial Applications
The LFD330Z6 gas leak detection thermal imaging detector provides reliable visualization of invisible CO₂ plumes even in harsh environments. Applications include: Carbon Capture, Utilization and Storage (CCUS), Enhanced Oil Recovery (EOR), Power Generation Industry, Food & Beverage Industry, Semiconductor & Electronics Manufacturing, Greenhouse Agriculture, Waste Treatment & Biogas Plants, and more.
Technological Advantages of Optical Gas Imaging
Non-contact & Remote Detection
Stay away from dangerous and complex areas, conduct non-contact non-destructive testing to ensure personnel safety
Quickly Locate Leakage Source
Support wide area real-time detection and quickly locate the leakage source without interrupting production
Visualize Gas Leakage
Intuitively display the location of leakage with high efficiency to avoid point-by-point inspection
Improve Inspection Safety
Safer detection helps reduce the risk of accidents and minimize operational losses
Frequently Asked Questions
What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
What are the main factors to measure the quality of a Cryocooler?
Long battery life and reliable operation are the main factors to measure the quality of a cryocooler. SensorMicro cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached 10,000 hours, which meets 24*7 boot operation requirements.
What is MTTF?
MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
