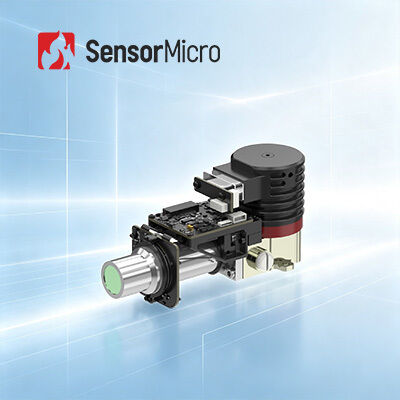

640x512 Resolution 15μm Pixel Size Cooled LWIR Thermal Camera Core with RS058 Cryocooler

  • 640x512 Resolution 15μm Pixel Size Cooled LWIR Thermal Camera Core with RS058 Cryocooler
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number EYAS G615LA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 15μm NETD 25mK(F2)
Spectral Range 7.7μm±0.2μm～9.4μm±0.3μm Size 145×60×78mm
Weight ≤590g Frame Rate 1~ 200Hz,adjustable
Highlight

LWIR Cooled Camera Modules

,

T2SL Cooled Camera Modules

,

640x512 LWIR Camera Core
Leave a Message
Product Description
640×512 15μm Cooled LWIR Thermal Camera Core with RS058 Cryocooler
Product Overview

EYAS G series cooled AD modules feature pre-amplifier functionality to convert analog signals from cooled IR detectors into digital video stream output. Available in various resolution formats and wave bands, the EYAS G615LA L is part of the EYAS G family, integrating a 640×512/15μm LWIR cooled detector with RS058 cryocooler.

Key Features
  • Analog-to-Digital Conversion, Accelerated Development – Based on 640×512/15μm LWIR cooled infrared detectors with integrated AD circuit for analog-to-digital conversion and compact dimensions matching the detector
  • LWIR for Anti-Interference Detection – Strong penetration through dust and sand for complex environments, unaffected by reflections from sun and sea surfaces, capable of detecting low-temperature objects
  • Excellent Performance, Easy Integration – Cameralink interface outputs 16-bit raw data with serial port control, adjustable high frame rate from 1 to 200Hz for capturing high-speed moving targets
Technical Specifications
Model EYAS G615LA
Indicators
Resolution 640×512
Pixel Size 15μm
Spectral Response 7.7μm±0.2μm～9.4μm±0.3μm
IR Detector NETD(23℃) 25mK(F2)
Working Mode
Frame Rate 1~200Hz, adjustable
Working Mode Snapshot Mode, ITR, ITR+Interlace, Anti-halo Function, Windows Mode
Electrical
Standard External Interface 60pin: 37201-SM060-032W1R01
5pin: A1257WR-S-5P-LCP
Digital Video 16 bit CameraLink (CameraLink Base mode)
External Sync CC1: External frame synchronous
Communication CameraLink UART (Default)/ RS232 (customizable)
Baud rate: 9600bps (Default)
Power Supply AD Board: 5V
Cryocooler: 24V
Steady Power (23℃) ≤12W
Cooling Time (23℃) ≤7min30s
Size (mm) 145×60×78
Weight (g) ≤590
Operating Temperature -40℃~+71℃
Industrial Applications

The EYAS G615LA thermal imaging module is widely used in many areas including NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.

Frequently Asked Questions
1. What is a cryocooler used for?

Cryocoolers maintain sensors at extremely low temperatures to enable thermal imaging during long-term missions. Many high-end applications require sensors to operate at these low temperatures for optimal image capture.

2. What are the main factors to measure the quality of a Cryocooler?

Long battery life and reliable operation are the primary quality indicators. SensorMicro cryocoolers feature a wide operating temperature range and excellent reliability, with MTTF (Mean Time to Failures) reaching 10,000 hours to meet 24×7 continuous operation requirements.

3. What is MTTF?

MTTF (Mean Time to Failure) measures component reliability by indicating the average lifespan before replacement is required. This metric provides insight into part quality and value – longer-lasting components deliver greater operational value.
