GAVIN GC1210LC LWIR Cooled Infrared Camera Core with 1280×1024 Resolution 50Hz Frame Rate and 35mK NETD for Long-range Surveillance

  • GAVIN GC1210LC LWIR Cooled Infrared Camera Core with 1280×1024 Resolution 50Hz Frame Rate and 35mK NETD for Long-range Surveillance
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1210LC
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024 Pixel Pitch 10μm
NETD 35mK(F2) Spectral Range 7.7μm±0.2μm～9.4μm±0.3μm
Size 148×59×82mm Frame Rate 50Hz
Highlight

12um Cooled Camera Module

,

MCT Detector Cooled Camera Module

,

OEM Mwir Camera Module
Leave a Message
Product Description

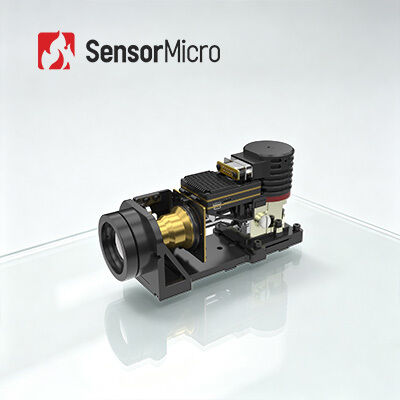

GAVIN GC1210LC LWIR Cooled Infrared Camera Core for Long-range Surveillance
Product Overview
The GAVIN GC1210LC infrared camera core adopts a Type-II Superlattice 1280×1024/10μm LWIR cooled infrared detector. Compared with traditional 640×512/15μm long-wave products, it reduces pixel size by one-third and increases resolution by four times, significantly enhancing spatial resolution and image clarity. Combined with multiple image processing algorithms, it delivers high-definition, delicate megapixel infrared images, making it particularly suitable for long-range target detection tasks in poor visibility and harsh weather conditions.
Main Features
Megapixel, High-Definition Imaging
  • Developed with a 1280×1024/10μm megapixel long-wave detector for exceptional detail
  • Enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
LWIR with Resilience against Interference
  • Strong resistance to dust and glare, adaptable to complex environments
  • Capable of detecting low-temperature objects
  • Type-II Superlattice technology with excellent quantum efficiency and uniformity
Rich Interfaces, Easy Integration
  • Multiple image interfaces: CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber
  • Flexible RAW/YUV image data output
Product Specifications
Model GAVIN GC1210LC
Indicators
Resolution 1280×1024
Pixel Size 10μm
Spectral Response 7.7μm±0.2μm～9.4μm±0.3μm
IR Detector NETD(23℃) 35mK(F2)
Image Processing
Frame Rate 50Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤15W
Cooling Time(23℃) ≤8min
Size(mm) 148×59×82
Weight(g) ≤730
Operating Temperature -40℃~+71℃
Optical Lens
Lens Options Fixed focus: 45mm/F2
Continuous zoom: 30~300/F2
Industrial Applications
The GAVIN GC1210LC thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-range Surveillance, Scientific Research etc.
Our Advantages
  • Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
  • Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
  • Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. SensorMicro cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
What is MTTF?
MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
