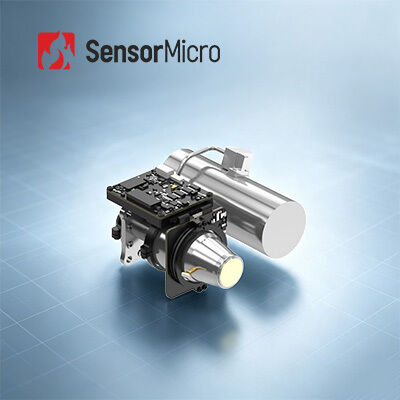

640x512 Resolution 15μm Pixel Size MWIR Cooled Thermal Module with Integrated Dewar Cooler Assembly

  • 640x512 Resolution 15μm Pixel Size MWIR Cooled Thermal Module with Integrated Dewar Cooler Assembly
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number EYAS G615ME
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 15μm Frame Rate 1~ 100Hz, Adjustable
NETD 16mK(F2); 18mK(F4) Spectral Range 3.7~4.8μm
Size 110×105×60mm Weight ≤590g
Highlight

640x512 MWIR Cooled Thermal Module

,

MCT MWIR Cooled Thermal Module

,

15um MWIR Camera Modules
Leave a Message
Product Description
15μm 640x512 MCT MWIR Cooled Thermal Module With Integrated Dewar Cooler Assembly
Product Overview

The EYAS G615ME cooled AD module consists of a 640x512/15μm MWIR cooled infrared detector integrated with an analog-to-digital (AD) board. The module converts analog output signals from cooled detectors into digital video streams while providing necessary drive power and control timing signals.

Powered by a high-performance linear Stirling cryocooler, the module operates longer and more stable, enabling OEM customers to quickly evaluate and validate infrared detectors, streamlining system integration and accelerating development pipelines.

Main Features
  • Analog-to-Digital Conversion, Accelerated Development - Based on 640×512 MWIR cooled infrared detectors with integrated AD circuit for analog-to-digital conversion; compact integrated design with dimensions consistent with the detector; mainstream resolution for wider adoption
  • Linear Cryocooler for Longer Lifespan - Equipped with LS723 high-performance linear Stirling cryocooler for extended operational life; supports continuous 24/7 operation
  • Excellent Performance, Easy Integration - Adjustable frame rate from 1 to 100 Hz for capturing fast-moving targets; Camera Link interface outputs 16-bit raw data with serial port control
Product Specifications
Model EYAS G615ME
Indicators Resolution: 640×512
Pixel Size: 15μm
Spectral Response: 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃): 16mK(F2), 18mK(F4)
Working Mode Frame Rate: 1~100Hz, adjustable
Working Mode: Snapshot
ITR/IWR Integration Modes
Anti-blooming
Windows Mode
Electrical Standard External Interface: 60pin: 37201-SM060-032W1R01, 5pin: A1257WR-S-5P-LCP
Digital Video: 16 bit CameraLink (CameraLink Base mode)
External Sync: CC1: External frame synchronous
Communication: CameraLink UART(Default)/RS232(customizable), Baud rate: 9600bps(Default)
Power Supply: AD Board: 5V, Cryocooler: 24V
Steady Power (23℃): ≤14W
Cooling Time(23℃): ≤6min30s
Size(mm) 110×105×60
Weight(g) ≤590
Operating Temperature -40℃~+71℃
Industrial Applications
  • NDT (Non-Destructive Testing)
  • Environmental Monitoring
  • Long-Range Surveillance
  • Scientific Research
Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation
  • Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification services
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
  • Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
What is a cryocooler used for?

Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.

What are the main factors to measure the quality of Cryocooler?

Long battery life and reliable operation are main factors to measure the quality of a cryocooler. SensorMicro cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.

What is MTTF?

MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
