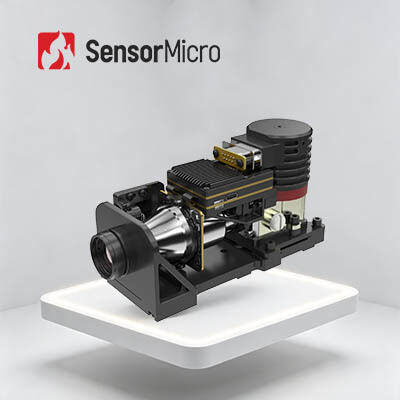

640x512 Resolution 15μm Pixel Size High Sensitivity MWIR Camera Core Cooled Thermal Module

  • 640x512 Resolution 15μm Pixel Size High Sensitivity MWIR Camera Core Cooled Thermal Module
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Size 142×58.5×80mm Weight ≤680g
Resolution 640x512 / 15μm IR Detector NETD(23℃) 16mK(F2); 18mK(F4)
Spectral Range 3.7μm±0.2μm～4.8μm±0.2μm Frame Rate 50Hz/100Hz
Highlight

640x512 Cooled Thermal Module

,

15μm Cooled Thermal Module
Leave a Message
Product Description
640x512 / 15μm MCT MWIR Cooled Thermal Module for Multi Sensor Payload
Product Overview

GAVIN GC615MA is a cooled mid wave thermal imaging module developed by SensorMicro. It consists of a 640x512 / 15µm HgCdTe MWIR IR detector with RS058 low-temperature stirling cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.

It features built-in advanced AI image algorithms, offering a full range of specifications with excellent consistency and stability. The product supports large-scale, reliable supply, fully meeting the needs of various industrial applications. Even in complete darkness or harsh weather conditions, the camera core delivers clear thermal images and accurate detection of both distant threats and close-range details. Ideal for security, surveillance, and monitoring scenarios, the GAVIN GC615MA infrared camera core provides reliable technological support across diverse environments.

Main Features
  • Mainstream FPA, Broad Compatibility - Developed based on a 640×512/15μm MWIR cooled infrared detector, ensuring stable image quality. Integrated next-generation image algorithms including DRC, 2D/3D noise reduction, and EE (edge enhancement) for clearer imaging.
  • High Reliability, High Sensitivity - Mid-wave cooled infrared ensures excellent versatility and consistency. High thermal sensitivity with NETD as low as 16mK.
  • Easy Integration, Flexible Configuration - Cameralink video interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available.
Product Specifications
Model GAVIN GC615MA
Indicators
Resolution 640×512
Pixel Size 15μm
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 16mK(F2)
18mK(F4)
Image Processing
Frame Rate 50Hz/100Hz
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Analog Video PAL/NTSC
Digital Video Standard: DVP/LVDS/USB2.0@50Hz
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤10W
Cooling Time(23℃) ≤8min
Size(mm) 142×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Optical Lens
Lens Options Fixed focus: 25mm/F2
Continuous zoom: 30~240mm/F4, 15~300mm/F4, 45~450mm/F4, 35~690mm/F4, 32~730mm/F4
Industrial Applications

The GAVIN GC615MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. SensorMicro cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
What is MTTF?
MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
