MCT MWIR Infrared Detector Cooled Thermal Module 640x512 15μM
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512 / 15μm||NETD||≤20mK|
|Spectral Range||3.7~4.8μm MW||Frame Rate||50Hz/100Hz|
Detector Cooled Thermal Module 640x512,
MWIR Cooled Thermal Module 15μM,
MCT Infrared Camera Modules

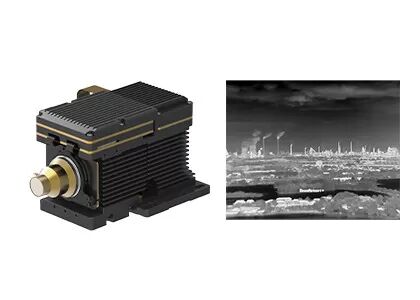

Cooled Thermal Module With 640x512 / 15μm MCT MWIR Infrared Detector
GAVIN615B is a cooled mid wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 640x512 / 15µm HgCdTe MWIR IR detector with RS046 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images. It is effective for spectral range from 3.7μm～4.8μm MW.
Configured with RS046 cryocooler, the GAVIN615B is very compact in size, measuring 125x92x67mm in dimension and weighing less than 650g in weight. It’s stable power consumption is as low as 12w. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN615B thermal imaging module.
- High Sensitivity, NETD≤20mK
- Long Range Detection
- Adjustable Frame Rate
- Easy Integration into the System
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Cooling Time (20°C)||≤7min|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin|
|Digital Video||16bit RAW/YUV: 16bit DVP/Cameralink Output|
|External Sync||Frame External Sync: RS422 Level|
|Stable Power Consumption||12W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Continuous Zoom
The GAVIN615B thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
4. What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
