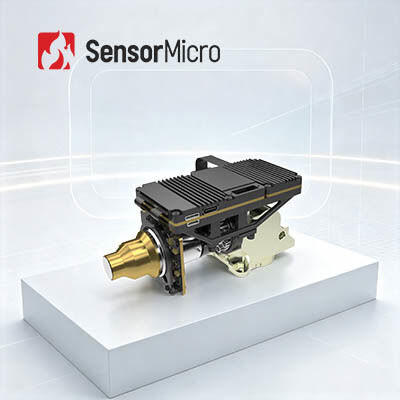

Cooled Thermal Module with 640x512 Resolution and 15μm Pixel Size MWIR Infrared Detector Featuring RS046 Cryocooler

  • Cooled Thermal Module with 640x512 Resolution and 15μm Pixel Size MWIR Infrared Detector Featuring RS046 Cryocooler
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615MB
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 15μm IR Detector NETD (23℃) 20mK(F4); 25mK(F5.5)
Spectral Range 3.7~4.8μm MW Frame Rate 50Hz/100Hz
Size 120×84×60mm Weight ≤440g
Highlight

Detector Cooled Thermal Module 640x512

,

MWIR Cooled Thermal Module 15μM

,

MCT Infrared Camera Modules
Leave a Message
Product Description
Cooled Thermal Module with 640x512 / 15μm MWIR Infrared Detector
Product Overview

The GAVIN GC615MB is a cooled mid-wave thermal imaging module developed by SensorMicro. It integrates a 640x512/15μm MWIR infrared detector with RS046 cryocooler, hardware electronics, and advanced image processing algorithms to deliver sharp, clear thermal images. Effective spectral range: 3.7μm～4.8μm MW.

Configured with RS046 cryocooler, the GAVIN GC615MB features a compact design measuring 120×84×60mm and weighing less than 440g. With stable power consumption as low as 10W and industrial-standard CameraLink interface, infrared camera and system integrators can easily design complete camera solutions.

Main Features
  • Mainstream FPA, Broad Compatibility: Powered by 640×512/15μm mid-wave cooled infrared detector for detailed thermal imaging with integrated DRC, 2D/3D noise reduction, and edge enhancement algorithms
  • High Reliability, Superior Sensitivity: MWIR cooled thermal imaging technology ensures excellent adaptability and consistency with outstanding thermal sensitivity (NETD ≤ 20mK)
  • Easy Integration, Flexible Configuration: Supports CameraLink interface with RAW/YUV image data output and multiple continuous zoom optical configurations
Product Specifications
Model GAVIN GC615MB
Indicators
Resolution 640×512
Pixel Size 15μm
Cryocooler RS046
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 20mK(F4)
25mK(F5.5)
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Standard External Interface J30JZ25 25PIN
Analog Video PAL/NTSC
Digital Video Standard: DVP/LVDS/USB2.0@50Hz
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤10W
Cooling Time(23℃) ≤8min
Size(mm) 120×84×60
Weight(g) ≤440
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Optical Lens
Lens Options Fixed focus: 25mm/F2
Continuous zoom: 15~300mm/F4 23~450mm/F4
Industrial Applications

The GAVIN GC615MB thermal infrared camera module is widely used in NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and related fields.

Our Product Line
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available (both uncooled and cooled IR detectors in different formats and pixel sizes)
  • Volume production to ensure fast delivery (three production lines with annual production capability up to millions of detectors)
Frequently Asked Questions
What is a cryocooler used for?

Cryocoolers maintain sensors at extremely low temperatures to enable thermal imaging during long-term missions. Many high-end applications require sensors to operate at these low temperatures for optimal image capture.

What are the main factors to measure the quality of Cryocooler?

Long battery life and reliable operation are primary quality indicators. SensorMicro cryocoolers feature a wide operating temperature range and excellent reliability, with MTTF (Mean Time to Failures) reaching 10,000 hours to meet 24/7 operational requirements.

What is MTTF?

MTTF (Mean Time to Failure) measures part reliability by indicating average lifespan before replacement. This metric provides insight into component quality and value - longer-lasting parts deliver greater value.

What are the applications of thermal imaging?

Infrared thermal imaging technology primarily serves temperature measurement and all-weather imaging functions. Products based on these technologies are widely used in security & monitoring, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, and AIoT applications.
