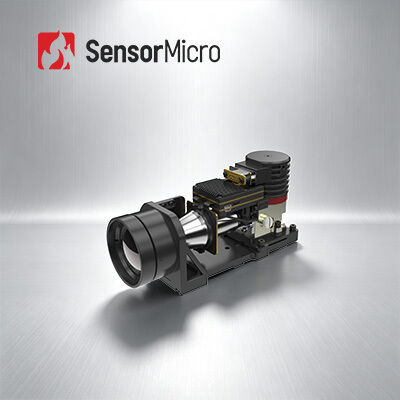

LWIR Cooled Thermal Camera Core with 640x512 Resolution and 25μm Pixel Size Using Type-II Superlattice Technology

  • LWIR Cooled Thermal Camera Core with 640x512 Resolution and 25μm Pixel Size Using Type-II Superlattice Technology
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC625LC
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 25μm IR Detector NETD (23℃) 20mK(F2)
Size 148×59×81mm Weight ≤730g
Long Wavelength 7.7~9.4μm Frame Rate 100Hz/200Hz
Highlight

HD LWIR Cooled Thermal Camera Core

,

640x512 Cooled Thermal Camera Core

,

Security Monitoring LWIR Thermal Camera
Leave a Message
Product Description
LWIR Cooled Thermal Camera Core 640x512/25µm for Security Monitoring
Product Overview

The GAVIN GC625LC infrared camera core integrates a Type-II Superlattice (T2SL) 640×512/25μm LWIR cooled infrared detector. Compared to traditional 640×512/15μm LWIR camera cores, the larger 25μm pixel size captures more thermal radiation, delivering superior image quality.

The camera core incorporates multiple image processing algorithms, making it especially suitable for reconnaissance and detection in challenging environments, such as dusty conditions or strong sunlight with reflective interference. It also supports various mainstream video interfaces, providing easy development and flexible integration, making it an ideal choice for long-range, high-performance LWIR system integration.

SensorMicro specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We provide customers with a variety of infrared thermal imaging solutions. By using SensorMicro infrared camera modules, customers can conduct independent secondary development and reduce research and development costs.

Main Features
Mainstream FPA, Larger Pixel Size
  • Developed with a 640×512/25μm LWIR cooled infrared detector for stable imaging and wide application
  • Enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
LWIR with Resilience against Interference
  • Strong resistance to dust and glare, adaptable to complex environments
  • Capable of detecting low-temperature objects
  • Type-II Superlattice technology with excellent quantum efficiency and uniformity
Rich Interfaces, Easy Integration
  • Multiple image interfaces: CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber
  • Flexible RAW/YUV image data output
Product Specifications
Model GAVIN GC625LC LWIR Cooled Infrared Camera Core
Indicators
Resolution 640×512
Pixel Size 25μm
Spectral Response 7.7μm±0.2μm～9.4μm±0.3μm
IR Detector NETD (23℃) 20mK(F2)
Image Processing
Frame Rate 100Hz/200Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤18W
Cooling Time(23℃) ≤9min
Size(mm) 148×59×81
Weight(g) ≤730
Operating Temperature -40℃~+71℃
Optical Lens Fixed focus: 55mm/F2
Industrial Applications

The GAVIN GC625LC cooled infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-range Surveillance, Scientific Research etc.

Our Core Strengths
Stable Supply

Boasting a stable and reliable supply chain across our full ecosystem, we can respond quickly to market demands.

Sustaining Innovation

With expertise in detector manufacturing and experience in supporting system integration, we gain deep insight into performance requirements, continuously optimize designs, and create a virtuous cycle: Product Application → Technical Feedback → Product Upgrade.

Cost Advantage

By managing the entire production chain and leveraging efficient, large-scale manufacturing, we deliver competitive pricing for a wide range of applications.

Frequently Asked Questions
What is Pseudo Color?

Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system and displays them on the monitor in grey level or pseudo color. This allows users to obtain the temperature distribution of objects.

To make it easier for people to analyze thermal images visually, they are represented using false colors that represent temperature differences.

How many pseudo color can SensorMicro thermal imaging module offer?
  • White Hot
  • Lava
  • Ironbow
  • Hot Iron
  • Medical
  • Arctic
  • Rainbow1
  • Rainbow2
  • Red Hot
  • White Hot
