HD LWIR Cooled Thermal Camera Core 640x512 For Long Range Security Monitoring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512 / 15μm | NETD | ≤25mK |
|---|---|---|---|
| Size | 155x67x80mm | Weight | ≤900g |
| Long Wavelength | 7.7~9.5μm | Infrared Lens | 25mm |
| High Light | HD LWIR Cooled Thermal Camera Core,640x512 Cooled Thermal Camera Core,Security Monitoring LWIR Thermal Camera |
||
Product Description

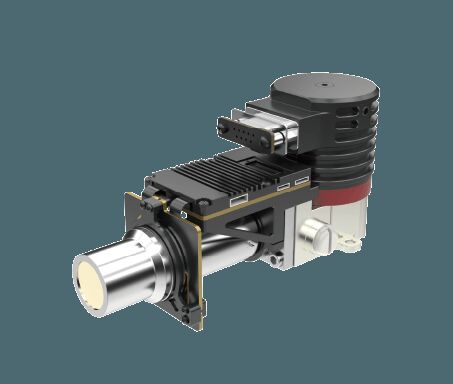

HD LWIR Cooled Thermal Camera Core 640x512 For Long Range Security Monitoring
Product Description
GAVIN615L is one of GAVIN series that is a kind of standard cooled infrared module developed by Global Sensor Technology (GST).It uses a cooled 640x512 / 15µm LWIR infrared detector and RS058 cryo cooler inside.
Various image processing algorithms are already embedded in the GAVIN615L electronics to output clear infrared images in the total darkness or bad weather conditions. This cooled camera module can not only present more target details at short distance, but also detect and recognize threats at long distance.
Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions. By using GST infrared camera modules, it is convenient for them to conduct independent secondary development and reduce their cost of research and development.
Main Features
- Meet the Needs of Long Range Detection
- High Sensitivity
- Long Range Detection
- Easy Integration into the System
- DVP/Cameralink Interface, RAW/YUV Image Output
- A Variety of Continuous Optical Zoom Lenses are Available
Product Specifications
| Model | GAVIN615L |
| IR Detector Performance | |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Cryocooler | RS058 |
| Spectral Range | 7.7μm~9.5μm LW |
| Cooling Time (20°C) | ≤7min |
| NETD (20°C) | ≤25mK |
| Image Processing | |
| Frame Rate | 50Hz/100Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | ×1/×2/×4 |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | J30JZ 25pin |
| Analog Video | PAL |
| Digital Video | 16bit RAW/YUV: 16bit DVP/Cameralink Output |
| External Sync | Frame External Sync: RS422 Level |
| Communication | RS422, 115200bps |
| Power Supply | 20~28VDC |
| Stable Power Consumption | 14W |
| Dimension (mm) | 155×67×80 |
| Weight | ≤900g |
| Operation Temperature | -40°C ~ +60°C |
| Vibration Magnitude | Vibration: GJB Vehicle-mounted High Speed Transport Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each |
| Optical Lens | |
| Optional Lens | Fixed Zoom: 25mm/F2 |
Industrial Applications
The GAVIN615L cooled infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
About Global Sensor Technology
FAQs
1.What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.
2. How many pseudo color can GST thermal imaging module offer?
- White Hot
- Lava
- Ironbow
- Hot Iron
- Medical
- Arctic
- Rainbow1
- Rainbow2
- Red Hot
- White Hot
