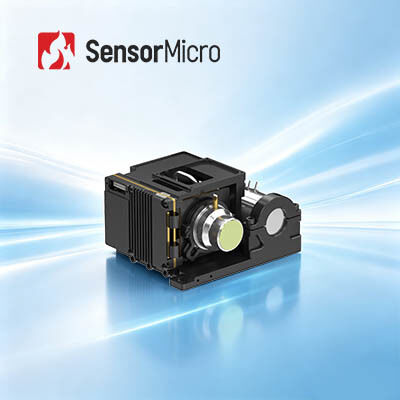

Cooled Thermal Module with 1024×768 Resolution 10μm Pixel Size and HOT Technology MWIR Camera Core

  • Cooled Thermal Module with 1024×768 Resolution 10μm Pixel Size and HOT Technology MWIR Camera Core
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1010HMG
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1024×768 / 10μm IR Detector NETD (23℃) 20mK(F2); 25mK(F4)
Spectral Range 3.7~4.8μm MW Frame Rate 50Hz
Size 87×94×54.5mm Weight ≤460g
Highlight

Cooled Thermal Module 640x512

,

Cooled Thermal Module 15um

,

F4 Lens Thermal Camera Core
Leave a Message
Product Description
Cooled HOT Thermal Module 1024×768/10μm With Fixed focus Lens 25mm/F2
Product Overview

The GAVIN GC1010HMG infrared camera core integrates a 1024×768/10μm HOT MWIR cooled infrared detector, offering superior imaging clarity with larger array size and smaller pixels. Featuring next-generation image processing algorithms, it delivers stable, high-quality images while HOT technology enables exceptional SWaP optimization with compact design and low power consumption.

This easy-to-integrate infrared camera core supports multiple digital video interfaces, making it ideal for handheld devices, mobile payloads, and long-duration monitoring applications where size, energy efficiency, and long-range detection capabilities are critical.

Main Features
  • Superior Imaging Quality: 1024×768/10μm large-format HOT MWIR cooled detector delivers clear images with wide field of view and higher spatial resolution
  • Advanced Image Processing: Next-generation algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for superior image quality
  • SWaP Optimization: HOT technology enables 150K high-temperature operation with cooling time ≤4 minutes
  • Compact Design: Dimensions: 87×94×54.5mm, Weight: 460g
  • Flexible Integration: Supports CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces with RAW/YUV image output
Technical Specifications
Model GAVIN GC1010HMG
Resolution 1024×768
Pixel Size 10μm
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD (23℃) 20mK (F2); 25mK (F4)
Frame Rate 50Hz
Digital Zoom 1× to 8× continuous digital zoom
Power Supply 12V±1V
Steady Power Consumption (23℃) ≤8W
Cooling Time (23℃) ≤4min
Dimensions 87×94×54.5mm
Weight ≤460g
Operating Temperature -40℃~+71℃
Optical Lens Fixed focus: 25mm/F2
Industrial Applications

The GAVIN GC1010HMG infrared camera module is widely used in NDT (Non-Destructive Testing), Environmental Monitoring, Long-Range Surveillance, Scientific Research, and various other industrial applications.

Our Advantages
  • High sensitivity and excellent performance with world-leading infrared technology
  • Comprehensive range of infrared detectors including both uncooled and cooled IR detectors in various formats and pixel sizes
  • Volume production capabilities with three production lines and annual capacity up to millions of detectors for fast delivery
Frequently Asked Questions
What is thermal sensitivity?

Thermal Sensitivity, also known as NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It measures the signal-to-noise ratio of temperature difference and is expressed in milliKelvins (mK). Smaller thermal sensitivity values indicate higher sensitivity and clearer image quality.

What is the difference between uncooled and cooled IR detectors?

There are two main types of infrared thermal imaging sensors: cooled and uncooled.

Uncooled IR detectors operate at ambient temperature and are based on semiconductor technology, enabling volume production with compact size and lower cost. They are widely used in portable, handheld, and mobile devices.

Cooled IR detectors are maintained at extremely low temperatures using cryo-coolers. While larger, more expensive, and requiring more complex cooling systems, they offer exceptional sensitivity and are typically used with long focal length optics for long-range applications.
