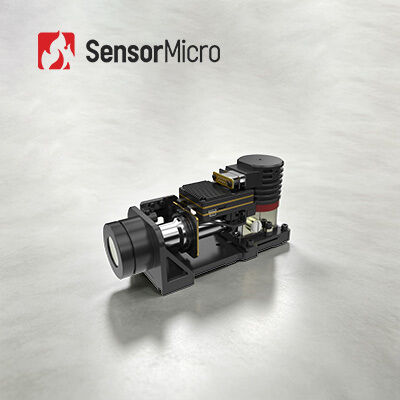

LWIR Cooled Thermal Camera Core with 640x512 Resolution and 15μm Pixel Size for High Thermal Sensitivity
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615LA |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 15μm | IR Detector NETD (23℃) | 25mK(F2) |
|---|---|---|---|
| Size | 145×58.5×77mm | Weight | ≤650g |
| Long Wavelength | 7.7~9.4μm | Cooling Time (23℃) | ≤8min |
| Highlight | LWIR Cooled Thermal Camera Core,Cooled Thermal Camera Core 640x512,HD LWIR Camera Core |
||
Product Description
LWIR Cooled Thermal Camera Core 640x512/15µm High Thermal Sensitivity
Product Overview
The GAVIN GC615LA is a standard cooled infrared module from SensorMicro's GC series, featuring a cooled 640x512/15µm LWIR infrared detector. Advanced image processing algorithms deliver clear infrared imaging in total darkness or adverse weather conditions.
This cooled camera module provides detailed target visualization at short distances while enabling threat detection and recognition at long ranges. SensorMicro specializes in thermal imaging solutions, offering customers versatile infrared modules for independent secondary development with reduced R&D costs.
Main Features
- Mainstream FPA, Wide Application: 640×512/15μm LWIR cooled detector for exceptional detail with advanced image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement
- LWIR with Resilience against Interference: Strong resistance to dust and glare, adaptable to complex environments with Type-II Superlattice technology for excellent quantum efficiency and uniformity
- Rich Interfaces, Easy Integration: Multiple image interfaces including CameraLink, USB3.0, GigE, HDMI, SDI, MIPI, and Fiber with flexible RAW/YUV image data output
Product Specifications
| Model | GAVIN GC615LA |
|---|---|
| Indicators |
Resolution: 640×512 Pixel Size: 15μm Spectral Response: 7.7μm±0.2μm～9.4μm±0.3μm IR Detector NETD(23℃): 25mK(F2) |
| Image Processing |
Frame Rate: 50Hz/100Hz/200Hz Dimming Mode: Linear/Histogram/Mixed Digital Zoom: 1× to 8× continuous digital zoom Image Algorithm: DRC, 2D/3D Image Noise Reduction, EE |
| Electrical |
Digital Video: Standard: DVP | Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber External Sync: Standard: LV-TTL | Option: RS422/LVDS Communication: Standard: USB2.0/LV-TTL | Option: RS422/CAN/USB3.0/GigE Power Supply: 24V±4V Steady Power Consumption(23℃): ≤11W Cooling Time(23℃): ≤8min |
| Size & Weight |
Size(mm): 145×58.5×77 Weight(g): ≤650 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens |
Fixed focus: 25mm/F2 Continuous zoom: 30~300mm/F2 |
Industrial Applications
The GAVIN GC615LA cooled infrared camera module is widely used in NDT (Non-Destructive Testing), Environmental Monitoring, Long-range Surveillance, Scientific Research, and related fields.
Production Capability
In-House Infrared Detector Technologies
- 8-inch 0.11μm VOx Uncooled Infrared Detectors
- 8-inch 0.5μm MCT Cooled Infrared Detectors
- 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
- 6 million self-developed infrared detectors per year
- 30,000 m² semiconductor fabrication facility
- 20,000 m² cleanroom area
Frequently Asked Questions
What is thermal sensitivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It represents the signal-to-noise ratio of temperature difference measured in milliKelvins (mK). Smaller values indicate higher sensitivity and clearer images.
What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are the core functions of infrared thermal imaging technology. Applications include security & monitoring, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, and AIoT systems.
