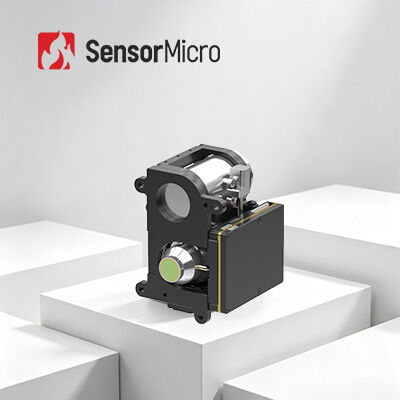

1280×1024 Resolution 7.5μm Pixel Size High Sensitivity Cooled Camera Module for Long Range Detection

  • 1280×1024 Resolution 7.5μm Pixel Size High Sensitivity Cooled Camera Module for Long Range Detection
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1207HMG
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280×1024/7.5μm IR Detector NETD (23℃) 25mk(F2/F3); 35mk(F4)
Size 71×55×84mm Weight ≤360g
Long Wavelength 3.7μm±0.2μm～4.8μm±0.2μm Infrared Lens 25mm/F2
Highlight

Cooled Camera Modules 25mK

,

High Sensitivity Cooled Camera Modules

,

640x512 Resolution Cooled Infrared Detector
Leave a Message
Product Description
1280×1024/7.5μm Cooled Camera Module High Sensitivity for Long Range Detection
Product Overview

The GAVIN GC1207HMG infrared camera core features a 1280×1024/7.5μm High Operating Temperature (HOT) mid-wave infrared (MWIR) cooled detector. Compared to traditional 640×512/15μm MWIR solutions, it offers one half smaller pixel size and four times higher resolutions, which dramatically enhances spatial resolution and image clarity. Combined with advanced image processing algorithms, it delivers high-definition, detailed infrared imagery at megapixel resolution.

With the same field of view, the 7.5μm small pixel design supports shorter focal lengths and more compact optical system designs. Combined with HOT technology, the product demonstrates significant SWaP (Size, Weight, and Power) advantages, making it particularly suitable for applications such as high-precision long-range detection and platforms with limited space.

Main Features
  • Megapixel Resolution, Ultra-Small Pixel Size: 1280×1024 resolution with next-gen image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement, delivering megapixel thermal images directly. With the same FOV, the 7.5μm small pixel size supports shorter focal lengths and more compact optical system designs, enhancing integration flexibility.
  • HOT Technology, Ultimate SWaP Optimization: Supports high operating temperature up to 150 K, with cooling time ≤4 min. Compact size of only 71×55×84mm and lightweight at 360g.
  • Rich Interfaces, Easy Integration: Multiple image interfaces: CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber. Flexible output of RAW/YUV image data.
Product Specifications
Model GAVIN GC1207HMG
Resolution 1280×1024
Pixel Size 7.5μm
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 25mk(F2/F3); 35mk(F4)
Frame Rate 50Hz
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 12V±1V
Steady Power Consumption(23℃) ≤8W
Cooling Time(23℃) ≤4min
Size(mm) 71×55×84
Weight(g) ≤360
Operating Temperature -40℃~+71℃
Lens Options Fixed focus: 25mm/F2
Continuous zoom: 15~300mm/F4 23~450mm/F4
Industrial Applications

The GAVIN GC1207HMG cooled infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier; Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment; Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
What is MCT/HgCdTe detector?
MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.
What is T2SL detector?
T2SL refers to Type-II Superlattice, which is an artificial material with alternating growth periodic heterojunction at nanometer size. It has high uniformity and superior optical property, such as large electron effective mass,large absorption coefficient and high quantum efficiency. Compared with MCT infrared detector, the T2SL infrared detector has good material uniformity, low cost, and similar performance to MCT infrared detector in medium and long wave band, but has great advantages in very long wave band.
