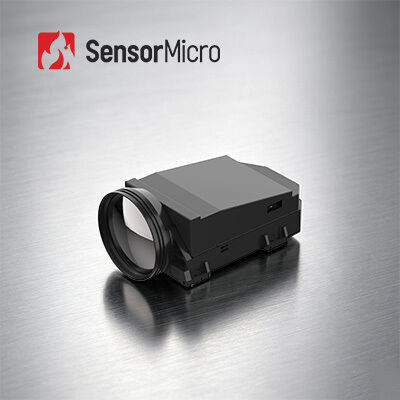

1280x1024 High Definition 12μm Pixel Pitch Cooled IR Camera Module for Long Range Detection

  • 1280x1024 High Definition 12μm Pixel Pitch Cooled IR Camera Module for Long Range Detection
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
High Definition 1280x1024 Spectral Range 3.7~4.8μm MW
Pixel Pitch 12μm Frame Rate 50Hz
NETD 18mK(F2/F4) Power Supply 24V±4V
Highlight

12um Cooled IR Camera Module

,

1280x1024 Cooled IR Camera Module

,

Cooled IR Camera Module Core
Leave a Message
Product Description
1280x1024 12μm Cooled IR Camera Module Core Long Range Detection
Product Overview

The GAVIN GC1212MA HD MWIR cooled infrared camera core features a self-developed 1280×1024/12μm MWIR cooled detector, providing four times the pixel count of conventional 640×512 detectors within the same active image area. This enables a wider field of view and reveals more detailed imagery.

Long Range Detection Capability

Equipped with advanced image processing algorithms, this camera module delivers high-definition images suitable for all-weather target detection under various visibility conditions and harsh environments. It can detect and recognize risks and threats at long distances while presenting detailed target information at short ranges.

Main Features
  • Mega Pixel Images: 1280×1024 high definition for wider FOV and longer distance detection with 12μm pixel size for superior spatial resolution
  • Sharp Clear Quality: Excellent uniformity with effective pixel rate >99.5% and high thermal sensitivity (NETD 18mK)
  • Fast Integration: Supports Cameralink interface with RAW/YUV image data output and various continuous zoom optical configurations
Product Specifications
Model GAVIN GC1212MA
Resolution 1280×1024
Pixel Size 12μm
Cryocooler RS058
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 18mK(F2/F4)
Frame Rate 50Hz
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤11W
Cooling Time(23℃) ≤8min
Size 149×58.5×80 mm
Weight ≤680g
Operating Temperature -40℃~+71℃
Lens Options Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications

The GAVIN GC1212MA thermal infrared camera module is widely used in many areas including NDT (Non-Destructive Testing), Environmental Monitoring, Long-Range Surveillance, and Scientific Research.

IR Detection Solutions
  • Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options provide greater flexibility for diverse applications
  • Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability designed to perform under environmental challenges
  • Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields
Frequently Asked Questions
What is the difference between uncooled and cooled IR detectors?

There are currently two types of infrared thermal imaging sensors: cooled and uncooled.

Uncooled IR detectors operate at ambient temperature and are based on semiconductor technology, allowing for mass production with small size and low cost. They are widely used in portable/handheld/mobile devices.

Cooled IR detectors are packaged in units that maintain extremely low temperatures supported by cryo coolers. They are larger, more expensive, and less reliable than uncooled sensors due to complex cooling systems. However, cooled systems offer incredible sensitivity and work with long focal length optics to achieve long-range missions.

What are the advantages of cooled infrared detectors?

Cooled infrared focal plane detectors operate at low temperatures provided by detector dewar coolers (DDC). They feature high sensitivity and can distinguish more subtle temperature differences than uncooled infrared detectors. This enables detection, identification, and recognition of objects at distances exceeding ten kilometers.

The complex structure of cooled detectors results in relatively higher costs compared to uncooled detectors, but provides superior performance for demanding applications.
