1280x1024 12μm Cooled IR Camera Module Core Long Range Detection
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|High Definition||1280x1024||Pixel Pitch||12μm|
|Size||165x86x107mm||Spectral Range||3.7~4.8μm MW|
12um Cooled IR Camera Module,
1280x1024 Cooled IR Camera Module,
RS058F Cooled Ir Detector
Long Range Detection 1280x1024 / 12μm MWIR MCT Cooled Camera Module with 37.5~750mm Zoom Lens

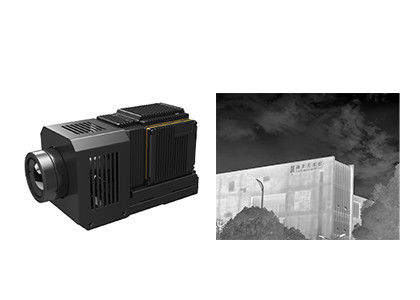

GAVIN1212 high resolution thermal camera module integrates large array 1280x1024/12μm cooled MWIR detector. Various image processing algorithms are embedded in the GAVIN1212 electronics to output clear infrared images in the total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while present more target details at short distance.
With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission. It is ideal choice for the EO-IR systems integrator to design their payload for air-borne or ship-borne applications.
Mega Pixel Images
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution
Sharp Clear Quality
• Good uniformity, effective pixel rate＞99.5%
• High sensitivity, NETD≤20mK
• Support Cameralink interface, RAW/YUV image data output
• Various continuous zoom optical configurations are optional
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin; HDMI Special Output Interface|
|Digital Video||HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV
|External Sync||Frame External Sync: RS422 Level|
|Stable Power Consumption||16W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2
The GAVIN1212 thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. What is the difference between uncooled and cooled IR detectors?
There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.
Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.
Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
2. What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
