MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs

I'm Online Chat Now

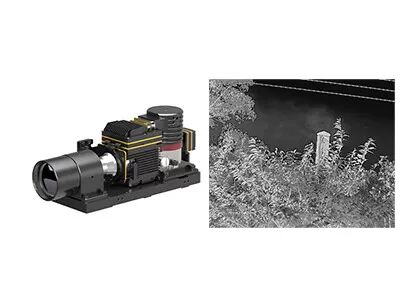

MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs

MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs
MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs

Large Image :  MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Function: Gas Leak Detection Cryo Cooler: RS058
Detector Resolution: 320x256 Pixel Size: 30μm
NETD: ≤15mK Spectral Range: 3.2±0.1~3.5±0.1μm
High Light:

Cooled Optical Gas Imaging Camera

,

RS058 Optical Gas Imaging Camera

,

Visualizing Invisible VOCs Thermal Imaging Camera

320x256 30μM MWIR Cooled Optical Gas Imaging Camera For Visualizing Gas Leaks

GAS330 Cooled Infrared Module



320x256 / 30μm MWIR Cooled Optical Gas Imaging Camera for Visualizing Gas Leaks



Product Description



With high performance signal processing circuit and advanced image processing algorithm, GAS330 cooled thermal module for gas leak detection is developed on the basis of HgCdTe mid-wave cooled infrared detector. By using the infrared thermal imaging technology, GAS330 can visualize the VOCs gas (volatile organic compounds) that can't be seen by naked eyes. It is effective to detect VOCs leakage in the production and transportation process of petrochemical enterprises, and has great application value in safety production, environmental protection supervision, cost saving.



Main Features



High Sensitivity Detection
• Highly sensitive infrared detector, NETD≤15mK
• Quite efficient in application of low gas concentration and slow gas flow
• Long distance non-contact detection of VOCs gas includes alkanes, alkenes, alcohols, benzenes, ketones etc.



Superior Performance
• Professional gas detection image processing algorithm
• Various lenses, more FOV & scenes available



Easy Integration
• Cameralink/DVP/USB/ GIG-E image output interface for quick integration into thermal imagers



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Exhibitions



MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs 0



FAQs



1. In which industries can the infrared detectors / thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
