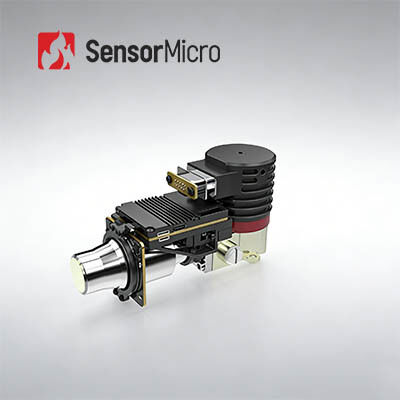

Cooled Thermal Camera Module with 320x256 Resolution and 30μm Pixel Size for Carbon Monoxide Leak Detection

  • Cooled Thermal Camera Module with 320x256 Resolution and 30μm Pixel Size for Carbon Monoxide Leak Detection
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number LFM330Z7
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Function Gas Leak Detection Frame Rate 30Hz/60Hz
Detector Resolution 320x256 Pixel Size 30μm
Typical NETD 10mK (F1.5) Spectral Range 4.5μm±0.1μm～4.7μm±0.1μm
Highlight

Cooled Optical Gas Imaging Camera

,

RS058 Optical Gas Imaging Camera

,

Visualizing Invisible VOCs Thermal Imaging Camera
Leave a Message
Product Description
Cooled Optical Gas Imaging Thermal Camera Module 320x256 / 30μm for Carbon Monoxide Leakage Detection
Product Overview

Carbon monoxide (CO) is a common gas in high-temperature metallurgy, petroleum refining, and similar industrial processes. It is colorless, odorless, highly diffusive, and toxic, while traditional gas detection methods often suffer from blind spots and high miss rates.

The LFM330Z7 gas leak detection infrared camera core, developed based on the LFD330Z7 detector with a resolution of 320x256 and pixel size at 30μm, operates in the 4.5-4.7μm spectral band, which is suitable for detecting CO and other gases with similar infrared absorption features. The product features wide-area scanning, long-range detection, and visualized imaging, enabling precise leak localization. It can be easily integrated into various intelligent inspection devices, effectively improving hazard identification efficiency and enhancing industrial safety.

Main Features
  • High Sensitivity, Precise Leak Localization
    • Developed based on the self-developed LFD330Z7 detector, suitable for CO and gases with similar spectral features
    • NETD as low as 10mK, enabling precise detection of small leaks at long distances
  • Enhanced Imaging with Gas-Enhancement Algorithm
    • Equipped with a gas-enhancement HSM algorithm, making even subtle leaks clearly visible
  • Rich Interfaces, Easy Integration
    • Fully self-developed core components, offering great cost advantages
    • Multiple interfaces supported, including RAW and YUV image output
Product Specifications
Model LFM330Z7
Resolution 320×256 (Optional: 640×512)
Pixel Size 30μm
Spectral Response 4.5μm±0.1μm～4.7μm±0.1μm
Typical NETD 10mK (F1.5)
Effective Pixel Rate ≥99.5%
Frame Rate 30Hz/60Hz
Digital Video Standard: DVP/LVDS/USB2.0
Option: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Cooling Time (23℃) ≤8min@12V
Steady Power (23℃) ≤10W
Size (mm) ≤142×58.5×80
Weight (g) ≤680
Operating Temperature -40℃~+71℃
Focal Length 23mm/55mm
Industrial Applications

The LFM330Z7 gas leak detection thermal imaging camera is used for visualizing carbon monoxide leakage detection in industrial areas such as:

  • Steel & Metallurgy
  • Petroleum & Natural Gas
  • Chemical Industry
  • Power & Energy
About SensorMicro

SensorMicro is the world leading infrared detector manufacturer and service provider. We provide customers worldwide with high performance uncooled and cooled thermal imaging detectors and share our professional application experience.

SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.

SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.

Frequently Asked Questions
In which industries can the infrared detectors / thermal camera cores be used?
SensorMicro thermal camera modules are widely used in many industries such as:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
