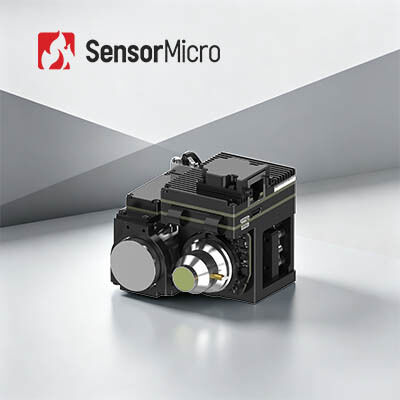

Cooled MWIR Infrared Camera Core with 640x512 Resolution and 15μm Pixel Size for Long-range Detection

The GAVIN GC615HMG is a high-performance HOT MWIR cooled infrared camera core engineered for professional infrared imaging applications. Integrated with a 640×512/15μm large-format FPA detector and advanced next-generation image processing algorithms including DRC, 2D/3D noise reduction and edge enhancement, it delivers ultra-clear, high-stability thermal images with exceptional detail restoration capability.

Leveraging cutting-edge HOT technology that supports 150K high-temperature operation and rapid cooling within 3 minutes and 30 seconds, the module achieves superior SWaP optimization with a compact 71×55×84mm dimension, 350g lightweight body and merely 7W low power consumption.

• Easy to Develop & Integrate
• Cameralink Interface Output 16bit Raw Data, Serial Port Control
• Integrated Structure, Dimensions are Consistent with Detector
• 5V Single-supply
• Capable of Capturing High Speed Moving Target

The GAVIN GC615HMG thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.

SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs.

SensorMicro exists to empower people and systems to see beyond the surface—into the patterns, the problems, and the possibilities that lie beneath.

By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity.

Heeding to our insistence on being self-made and customer-first has become a sure recipe for SensorMicro's momentum. As our business spans much of the globe, we've charged ahead on all fronts—from security, firefighting, industrial inspection, medical care, and machine vision, to environmental monitoring and key aspects of carbon neutrality—helping partners unlock the full potential of intelligent infrared sensing, and connecting the dots of life.

We are more than an infrared technology company. We are a community of people committed to building a sustainable, ethical, and human-centered future. Every pixel of innovation we create is a promise—a promise to protect, to empower, and to serve.

Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

• See through total darkness
• Identification under camouflage
• Long range detection
• Heat distribution detection
• Non-contact temperature measurement
• Occupation awareness

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
