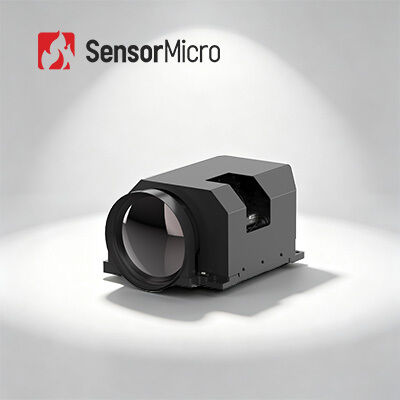

Cooled 640x512 15μm T2SL LWIR Thermal Camera Module with 7.7~9.4μm Spectral Range
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615LA |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 15μm | IR Detector NETD (23℃) | 25mK(F2) |
|---|---|---|---|
| Spectral Range | 7.7~9.4μm LW | Size | 145×58.5×77mm |
| Technology | Infrared | Material | T2SL |
| Highlight | T2SL Thermal Camera Module,Thermal Camera Module GAVIN615L |
||
Product Description
Cooled 640x512 15μm T2SL LWIR Thermal Camera Module GAVIN GC615LA
Product Overview
GAVIN GC615LA is a cooled long wave thermal imaging module featuring a 640x512/15μm high resolution T2SL LWIR IR detector with RS058 cryocooler. The module includes embedded hardware electronics and advanced image processing algorithms to deliver sharp, clear thermal images.
Operating in the spectral range of 7.7~9.4μm, the GC615LA delivers high performance in sand or dust climates and remains unaffected by sunlight flicker or high temperature flame interference.
Main Features
- Mainstream FPA, Wide Application: 640×512/15μm LWIR cooled detector for exceptional detail with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement
- LWIR with Resilience against Interference: Strong resistance to dust and glare, adaptable to complex environments with Type-II Superlattice technology for excellent quantum efficiency and uniformity
- Rich Interfaces, Easy Integration: Multiple image interfaces including CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber with flexible RAW/YUV image data output
Product Specifications
| Model | GAVIN GC615LA |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Cryocooler | RS058 |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| IR Detector NETD(23℃) | 25mK(F2) |
| Frame Rate | 50Hz/100Hz/200Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤11W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 145×58.5×77 |
| Weight(g) | ≤650 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 30~300mm/F2 |
Industrial Applications
The GAVIN GC615LA cooled infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-range Surveillance, Scientific Research, and other industrial applications.
Customized Services
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and price considerations. For lower image quality requirements, choose infrared detectors with lower resolution such as 120x90, 256x192, or 400x300. For very clear images in special applications like remote monitoring, choose high resolution infrared detectors of 1280x1024.
It depends on the actual needs and applications of your products, and price considerations. For lower image quality requirements, choose infrared detectors with lower resolution such as 120x90, 256x192, or 400x300. For very clear images in special applications like remote monitoring, choose high resolution infrared detectors of 1280x1024.
2. How to select right pseudo color for thermal imaging?
• Gray white is more suitable for targets with small temperature differences
• Red and blue is more suitable for scenes where problem points need to be identified
• Iron red is the standard color palette for the power industry
• Gray white is more suitable for targets with small temperature differences
• Red and blue is more suitable for scenes where problem points need to be identified
• Iron red is the standard color palette for the power industry
Note: The thermal temperature reading remains unchanged regardless of which color palette you choose.
3. How to choose a suitable infrared thermal camera lens?
• Standard lens: Suitable for normal targets at appropriate distances
• Telephoto lens: Suitable for relatively small targets viewed from long distances
• Wide angle lens: Better for seeing more detail of objects at close distances
• Macro lens: For viewing very tiny targets at close distances, such as chip circuits
• Standard lens: Suitable for normal targets at appropriate distances
• Telephoto lens: Suitable for relatively small targets viewed from long distances
• Wide angle lens: Better for seeing more detail of objects at close distances
• Macro lens: For viewing very tiny targets at close distances, such as chip circuits
