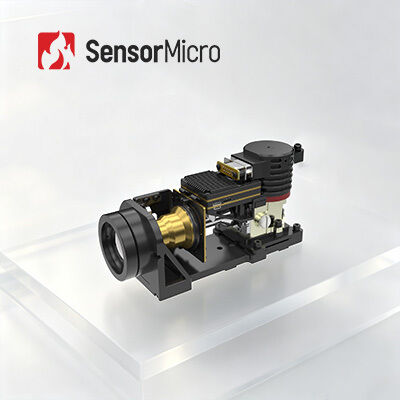

GAVIN GC1210LC High Reliability Cooled LWIR Thermal Imaging Module with 1280x1024 Resolution and 10μm Pixel Size at 50Hz Frame Rate
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC1210LC |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 / 10μm | IR Detector NETD (23℃) | 35mK(F2) |
|---|---|---|---|
| Frame Rate | 50Hz | Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| Size | 148×59×82mm | Weight | ≤730g |
| Highlight | 320x256 Thermal Imaging Module,30μM Thermal Imaging Module |
||
Product Description
GAVIN GC1210LC High Reliability Cooled LWIR 1280x1024 / 10μm Thermal Imaging Module
Product Overview
GAVIN GC series represents the standard cooled infrared camera module, available in various resolution formats, wave bands, and continuous optical lens options.
The GAVIN GC1210LC thermal imaging module features a 1280x1024/10μm LWIR cooled infrared detector operating in the 7.7μm±0.2μm～9.4μm±0.3μm long wave infrared spectral range. With an industrial standard CameraLink interface, infrared camera and system integrators can easily design and integrate complete camera systems based on this module.
Main Features
- Megapixel, High-Definition Imaging: Developed with 1280×1024/10μm megapixel long-wave detector for exceptional detail, enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement
- LWIR with Resilience against Interference: Strong resistance to dust and glare, adaptable to complex environments, capable of detecting low-temperature objects, featuring Type-II Superlattice technology with excellent quantum efficiency and uniformity
- Rich Interfaces, Easy Integration: Multiple image interfaces including CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber, with flexible RAW/YUV image data output
Product Specifications
| Model | GAVIN GC1210LC |
|---|---|
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| IR Detector NETD(23℃) | 35mK(F2) |
| Image Processing | |
| Frame Rate | 50Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤15W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 148×59×82 |
| Weight(g) | ≤730 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 45mm/F2 Continuous zoom: 30~300/F2 |
Industrial Applications
The GAVIN GC1210LC cooled thermal camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-range Surveillance, Scientific Research, and more.
Our Advantages
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. In which industries are focal plane array infrared detectors used?
Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.
2. What are the characteristics of cooled & uncooled infrared focal plane detector?
Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
