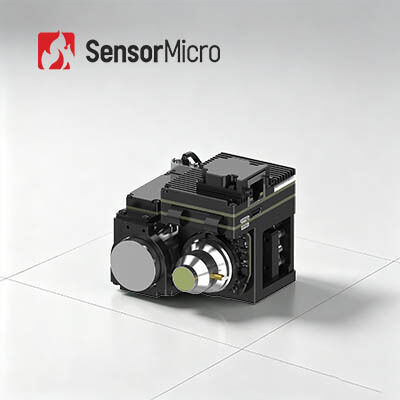

640x512 Resolution 15μm Pixel Size MWIR Cooled Infrared Camera Module with 150K High Operation Temperature

  • 640x512 Resolution 15μm Pixel Size MWIR Cooled Infrared Camera Module with 150K High Operation Temperature
  • 640x512 Resolution 15μm Pixel Size MWIR Cooled Infrared Camera Module with 150K High Operation Temperature
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615HMG
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Size 71×55×84mm Resolution 640x512 / 15μm
IR Detector NETD (23℃) 20mK (F4) Mid Wavelength 3.7μm±0.2μm～4.8μm±0.2μm
Characteristics Easy Integration Type HOT MWIR Cooled Infrared Camera Core
Highlight

OEM Cooled Camera Modules

,

OEM Raspberry Pi Infrared Camera Module

,

GST Cooled Camera Modules
Leave a Message
Product Description
640x512 / 15μm Cooled Infrared Camera Module 150K High Operation Temperature
Product Overview

The GAVIN GC615HMG is a high-reliability MWIR cooled infrared camera core designed for large-scale equipment integration and long-term industrial deployment. It integrates a mainstream 640×512/15μm FPA detector and mature image processing algorithms to guarantee stable and high-quality imaging output.

Advanced HOT technology effectively optimizes SWaP performance, solving the pain points of large size, high power consumption and slow cooling of traditional cooled infrared modules. With comprehensive interface compatibility and flexible secondary development conditions, it greatly reduces integration difficulty and R&D cycles.

Key Features
  • Mainstream FPA, Clear Imaging: Developed with 640×512/15μm large-format HOT MWIR cooled infrared detector offering excellent versatility. Equipped with next-generation image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement for clearer images.
  • HOT Technology Leading SWaP Optimization: Supports high-temperature operation up to 150K with cooling time ≤ 3min30s. Compact size: 71×55×84 mm, weight: 350g, power consumption: 7W.
  • Rich Interfaces, Easy Integration: Supports CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces. Flexible RAW/YUV image output.
Technical Specifications
Model GAVIN GC615HMG
Performance Indicators Resolution: 640×512
Pixel Size: 15μm
Cryocooler: RS058
Spectral Response: 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD (23℃): 20mK (F4)
Image Processing Frame Rate: 50Hz (F4) / 30Hz (F5.5)
Digital Zoom: 1× to 8× continuous digital zoom
Image Direction: Horizontally/Vertically/Diagonally Flip
Image Algorithm: DRC, 2D/3D Image Noise Reduction, EE
Electrical Analog Video: PAL/NTSC
Digital Video: Standard: DVP/LVDS/USB2.0
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync: Standard: LV-TTL, Option: RS422/LVDS
Communication: Standard: USB2.0/LV-TTL, Option: RS422/CAN/USB3.0/GigE
Power Supply: 12V±1V
Steady Power Consumption (23℃): ≤7W
Cooling Time (23℃): ≤3min30s
Physical Dimensions Size: 71×55×84 mm
Weight: ≤350g
Operating Temperature: -40℃~+71℃
Optical Lens Options Fixed focus: 25mm/F2
Continuous zoom: 18~275mm/F5.5, 110~1100mm/F5.5, 15~300mm/F4, 23~450mm/F4
Industrial Applications
  • NDT (Non-Destructive Testing)
  • Environmental Monitoring
  • Long-Range Surveillance
  • Scientific Research
About SensorMicro

SensorMicro is dedicated to delivering comprehensive and professional services that underpin our customers' success throughout the entire project lifecycle. Our service system is built on the core values of reliability, responsiveness, and customization, ensuring that every customer receives tailored support that aligns with their unique business needs.

Frequently Asked Questions
In which industries are focal plane array infrared detectors used?
Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.
What are the characteristics of cooled & uncooled infrared focal plane detectors?
Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
