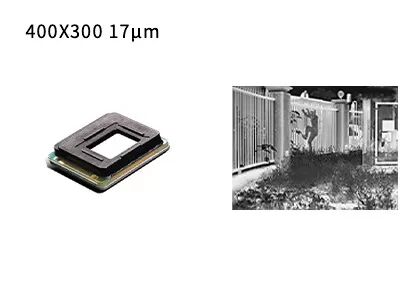

Focal Plane Array Uncooled Infrared Detector 400x300 / 17μm VOx Material

400x300 / 17μm Focal Plane Array Uncooled Infrared Detectors for Infrared Cameras

GST417W is a Wafer Level Packing (WLP) VOx uncooled focal plane array detector that is light, tiny and has low thermal noise and fast response. Its resolution is 400x300 and pixel size at 17μm with its optimized microbolometer structure of best sensitivity for long wavelength between 8 and 14 µm.

The GST417W uncooled microbolometer produces sharp thermal image quality for a wide range of industrial applications such as thermography, security monitoring, firefighting, autonomous driving, personal vision etc.

As a leading infrared detector and thermal imaging module supplier, we have provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for WLP uncooled VOx microbolometer sensors to be integrated into more terminal products and greatly reduces the cost for customers.

- Fully Optimized SWaP-C applications

- Suitable for various infrared products

- A wide range of thermal imaging applications

- Fast supply chain with high volume production

The GST417W uncooled microbolometer detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, UAVs Payload, Epedemic Prevention, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.

Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements

On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training

Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness

3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
