12μm Pixel Pitch LWIR Camera with VPC/ USB3.0/ GigE/ Cameralink Extension Components

Product Description:

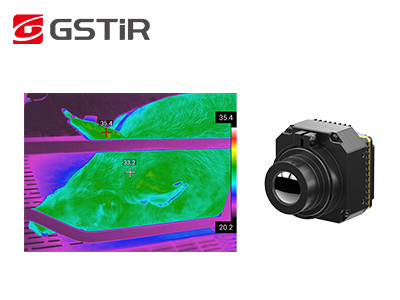

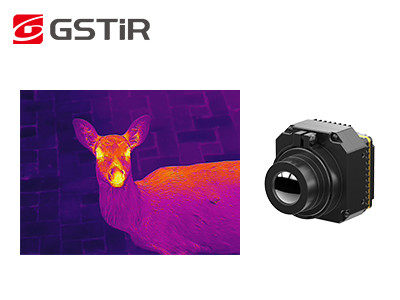

Thermal Camera Core is a high-performance thermal module designed for use in commercial and industrial applications. It features a 640x512/12um resolution microbolometer with a spectral range of 8μm to 14μm. With a manual focus and a fixed focus athermal lens, this thermal module is ideal for detecting heat sources in both close-up and long-range environments. The working voltage is 4V to 6V and the fixed focus athermal lens comes in 19mm and 24mm options. This thermal camera core delivers unbeatable performance in any application where pinpoint accuracy and the ability to detect subtle temperature differences is essential.

Features:

• Product Name: Thermal Camera Core
• Typical NETD: <40mK
• Fixed Focus Athermal: 19mm/24mm
• Frame Rate: 50Hz
• Size: 44.45mm×44.45mm×26mm
• Extension Components:VPC/ USB3.0/ GigE/ Cameralink

Technical Parameters:

Applications:

GSTiR's PLUG612 Thermal Camera Core is a powerful thermal module designed to meet the needs of a wide range of applications and scenarios. With a compact size of 44.45mm×44.45mm×26mm, it features a manual focus and a pixel pitch of 12μm, covering a spectral range of 8μm to 14μm. The fixed focus athermal design allows for 19mm/24mm of focus adjustment. It is ideal for applications that require a reliable and accurate thermal imaging solution. The PLUG612's advanced features make it a perfect choice for a variety of applications, including surveillance, security, home automation, industrial automation, and more.

Customization:

Support and Services:

• 24/7 access to technical support resources via online customer portal
• Phone and email support
• Live chat support
• Access to product documentation, knowledge base, and FAQs
• Software and firmware updates
• Hardware and component repairs
• On-site service and maintenance
• Training and consulting
• Support for third-party accessories
