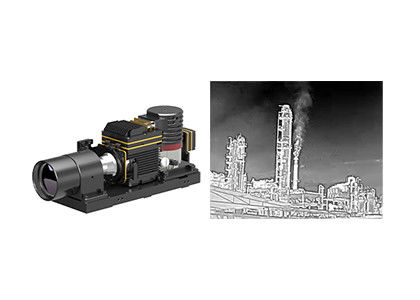

320x256 30μm Thermal Camera Core Cooled IR Camera Module for Gas Leak Detection

I'm Online Chat Now

320x256 30μm Thermal Camera Core Cooled IR Camera Module for Gas Leak Detection

320x256 30μm Thermal Camera Core Cooled IR Camera Module for Gas Leak Detection
320x256 30μm Thermal Camera Core Cooled IR Camera Module for Gas Leak Detection

Large Image :  320x256 30μm Thermal Camera Core Cooled IR Camera Module for Gas Leak Detection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Gas Leakage Detection Spectral Range: 3.2±0.1~3.5±0.1μm
Size: 155x67x80mm Weight: ≤900g
Resolution: 320x256 / 30μm NETD: ≤15mK
High Light:

320x256 Thermal Camera Core

,

900g Cooled Ir Camera Module

,

Cooled Ir Thermal Camera Core

GAS330 by GST Infrared



320x256 / 30μm Cooled Infrared Camera Module with 55mm Lens for VOCs Gas Leak Detection



Product Description



Volatile Organic Compounds, or VOCs, are gases that are emitted into the air from products or processes. Some are harmful by themselves, including some that cause cancer. In addition, they can react with other gases and form other air pollutants after they are in the air.



GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector and utilizes spectral wavelength filtering technology to visualize the invisible VOCs that cannot be seen by naked eyes.

Camera manufacturers can design their own gas leak detection camera based on this module easily and efficiently.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Exhibitions



320x256 30μm Thermal Camera Core Cooled IR Camera Module for Gas Leak Detection 0



FAQs



1. What is NETD?

NETD refers to "Noise Equivalent Temperature Difference". It is a measure for how well a thermal imaging detector is able to distinguish between very small differences in thermal radiation in the image. NETD is typically being expressed in milli-Kelvin (mK). Usually the lower the NETD figure is, the higher the thermal sensitivity indicates.



2. What is OGI (Optical Gas Imaging)?

Optical gas imaging is the method of using thermal infrared cameras to visualize gas, including methane and many other organic gases. Thermal cameras for gas leakage are fast-acting gas leak detection devices which can conduct non-destructive testing and protect the safety of inspectors.



3. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
