OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm

I'm Online Chat Now

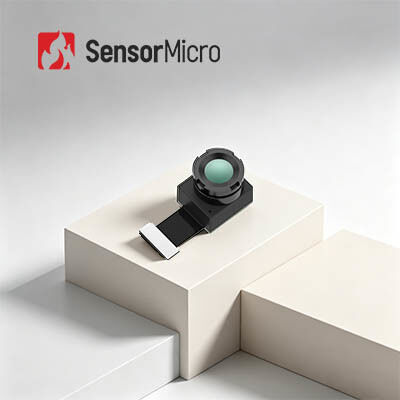

OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm

OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm
OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm

Large Image :  OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: TIMO256
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 Pixel Pitch: 12μm
Spectral Range: 8~14μm Temperature Range: -20℃~+120℃ (Customizable)
NETD: ≤45mK Size: 15x13x6.83mm
High Light:

Uncooled Thermal Imager Core

,

OEM Uncooled Thermal Imager

,

256x192 Uncooled Thermal Imager

TIMO256 Thermal Camera Core



Light Weight LWIR Uncooled Thermal Imaging Core with 256x192 Resolution, 12μm Pixel Size



Product Description



TIMO256 uncooled IR imaging module, also known as the uncooled thermal module, is one of the TIMO infrared camera module family developed by Global Sensor Technology (GST). It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that covers long wavelength from 8 to 14 microns.



Thanks to the WLP technology, the TIMO256 thermal IR camera module achieves super micro structure, ultra low cost expenditure while offers greater sensitivity and superior image quality at an affordable price, enabling the customer to choose the most suitable type according to their own requirements.



Due to its fully optimized structure, TIMO256 thermal camera core is popular and widely used in infrared thermal imaging applications such as Thermography, Epidemic Prevention, Smart Hardware, AIoT etc.



Main Features



- Detector: WLP uncooled microbolometer
- Resolution: 256x192 / 12 μm
- Miniature Size: 15x13x6.83mm
- NETD: ≤45mK



Product Specifications



Model TIMO-256
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤45mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 53°±1°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
Interface/Control
AVDD 3.6V±0.05V
VSK/VDET 5.0±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 70mW
Physical Characteristics
Dimension (mm) 15x13x6.83 (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C



Industrial Applications



The TIMO256 thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm 0



Our IR Products



OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm 1



FAQs



1. In which industries can the infrared detectors / thermal camera cores be used?



GST infrared detectors and thermal camera cores are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
