MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm

I'm Online Chat Now

MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm

MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm
MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm

Large Image :  MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: MWIR Camera Module IR Detector: Cooled Detector
Resolution: 1280x1024 / 12μm NETD: ≤20mK
Spectral Range: 3.7~4.8μm MW Size: 165x86x107mm
High Light:

MCT Infrared Thermal Imaging Module

,

1280x1024 Infrared Thermal Imaging Module

,

MWIR Infrared Thermal Module

GST GAVIN1212 Infrared Camera Core

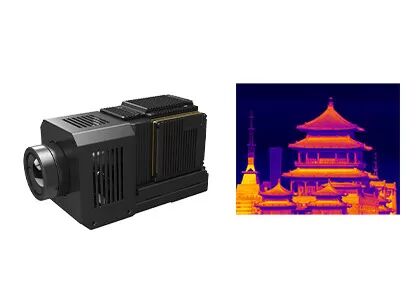

High Resolution 1280x1024 / 12μm MWIR MCT Thermal Imaging Module with Image Processing Algorithm



Product Description



GAVIN1212 is a cooled mid wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 1280x1024@12µm high resolution HgCdTe MWIR IR detector with RS058F cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.



The image processing algorithms including the basic non-uniformity correction (NUC), auto-gain control (AGC), intelligent details enhancement (IDE), etc. The GAVIN1212 can output megapixels high definition infrared images through its HDMI digital video interface. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN1212 thermal imaging module.



Main Features



- Meet the Needs of Long Range Detection

- High Sensitivity, NETD≤20mK

- Wide Field of View, Resolution up to 1280x1024

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- A Variety of Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤8min
NETD (20°C) ≤20mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin; HDMI Special Output Interface
Analog Video /
Digital Video HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 24V±1V
Stable Power Consumption 16W
Dimension (mm) 165x86x107
Weight ≤1600g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2



Industrial Applications



The GAVIN1212 thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm 0



Our Advantages



MWIR MCT Infrared Thermal Imaging Module 1280x1024 12μm 1



FAQs



1. What is NETD?

NETD refers to "Noise Equivalent Temperature Difference". It is a measure for how well a thermal imaging detector is able to distinguish between very small differences in thermal radiation in the image. NETD is typically being expressed in milli-Kelvin (mK). Usually the lower the NETD figure is, the higher the thermal sensitivity indicates.



2. What is SWaP3?

SWaP3 refers to size, weight, power, performance and price. It indicates the technology trend of infrared industry.



3. What is DRI?

DRI usually refers detection, recognition and identification distance of a thermal imaging system. It is a crucial parameter to judge the performance of the thermal imaging system.
