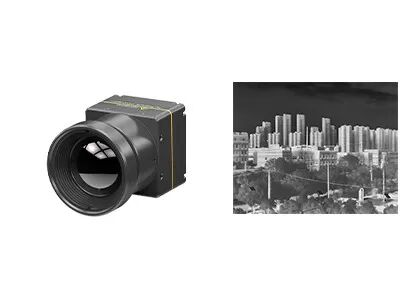

Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System

I'm Online Chat Now

Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System

Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System
Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System

Large Image :  Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN612R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm Typical NETD: ≤40mK
Spectral Range: 8~14μm Size: 25.4×25.4×27.4 (With 9.1mm Lens)
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

ITL612R Thermal Camera Core

,

Thermal Camera Core With Thermography

COIN612R Thermal Module for Drones


COINR 640x512 / 12μm Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System


Product Description


COIN612R is an affordable infrared camera module with thermal imaging system designed for commercial unmanned air vehicles (drones/UAV). It is specially developed for the field of UAV rescue and inspection, such as electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.. Based on UAV payloads, GST provides customers with various effective and mature solutions to perform tasks in different environments.

The COIN612R infrared camera core integrates 640x512 / 12μm thermal imaging sensor. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.


Main Features


- Size: 25.4×25.4×27.4 (With 9.1mm Lens)
- Weight: 27g±2g (With 9.1mm Lens)
- Typical NETD: ≤40mk
- Typical Power Consumption: <0.9W
- Rapid Development & Integration


Product Specifications



ModelCOIN612/R
IR Detector Performance
Sensitive MaterialVanadium Oxide
Resolution640×512
Pixel Pitch12μm
Spectral Range8μm ~14μm
Typical NETD≤40mK
Image Processing
Frame Rate25Hz/30Hz
Start-up Time5s
Analog VideoPAL/NTSC
Digital VideoRAW/YUV/BT656
Image AlgorithmNon-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image DisplayBlack Hot/White Hot/Pseudo Color
PC Software
ICC SoftwareModule Control & Video Display
Electrical Specifications
Standard External Interface50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)
USB Expansion BoardType-C
Communication InterfaceTTL-232/USB2.0
Digital Video InterfaceCMOS8/CMOS16/LVDS/USB2.0
Supply Voltage4~5.5V
Typical Power Consumption0.9W
Temperature Measurement
Operating Temperature Range-10℃~+50℃
Temperature Measurement Range-20℃~150℃, 0℃~550℃ (Support Expansion & Customization)
Temperature Measurement AccuracyGreater of ±3℃ or ±3%
Regional Temperature MeasurementSupport Maximum, Minimum and Average Value of the Output Regional Temperature
SDKWindows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm)25.4×25.4×27.4 (With 9.1mm Lens)
25.4×25.4×39.5 (With 13mm Lens)
25.4×25.4×38.3 (With 19mm Lens)
Weight27g±2g (With 9.1mm Lens)
40g±2g (With 13mm Lens)
41g±2g (With 19mm Lens)
Environmental Adaptability
Operation Temperature-40°C ~ +70°C
Storage Temperature-45°C ~ +85°C
Humidity5%~95%, non-condensing
VibrationRandom Vibration 5.35grms, 3 Axis
ShockHalf-sine Wave, 40g/11ms, 3 Axis 6 Direction
CertificateROHS2.0/REACH
Optics
Optional LensFixed Focus Athermal: 9.1mm/13mm/19mm
Protection LevelIP67 Rating (Front Surface)



Industrial Applications


The COIN612R thermal camera core for UAV payloads can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.

Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System 0


Our Advantages


Thermal Camera Core with Thermography for Unmanned Aerial Vehicle System 1


FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

2. What is the advantage of infrared thermal imaging?
---See through total darkness
---Identification under camouflage
---Long range detection
---Heat distribution detection
---Non-contact temperature measurement
---Occupation awareness
---And so on

3. What is the applications of infrared thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
