PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector

I'm Online Chat Now

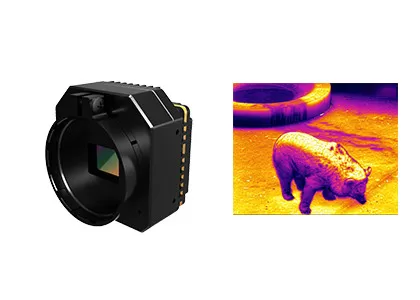

PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector

PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector
PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector

Large Image :  PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 17μm NETD: <30mK
Camera Lens: Multiple Available Frame Rate: 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time: <10s Spectral Range: 8~14μm LW
High Light:

PLUG617 Uncooled Thermal Module

,

640x512 Uncooled Thermal Module

,

30mK LWIR camera module

PLUG617 LWIR Camera Module



PLUG617 Uncooled Thermal Camera Module with LWIR 640x512 / 17μm Infrared Detector



Product Description



PLUG617 uncooled camera core consists of 640x512 / 17µm uncooled thermal camera sensor and provides clear image and superior performance.



PLUG617 LWIR infrared module is one of the PLUG series that are developed by Global Sensor Technology (GST). The PLUG series are specially for the industrial observation. By using its infrared thermal imaging technology, customers can benefit in many industries such as security and surveillance, outdoors, animal observation, rescue etc.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG617
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <1.2W
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight <90g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm



Industrial Applications



The PLUG617 thermal imaging module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.



PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector 0



Our Cooled Uncooled Infrared Detector Line



PLUG617 Uncooled Thermal Module with LWIR 640x512 / 17μm Infrared Detector 1

FAQs



1. What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;
Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
