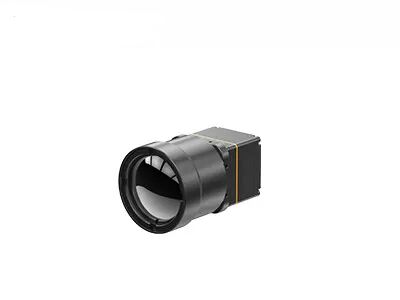

LWIR Thermal Imaging Module with Temperature Measurement Accuracy of ±2℃ or ±2%

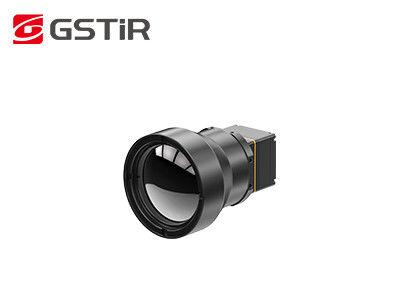

TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.
With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.
The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.
Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.
- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W
|IR Detector Performance|
|Image Display||11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)|
|Standard External Interface||50pin_HRS|
|Typical Power Consumption||0.8W|
|Operating Temperature Range||-10℃~50℃|
|Temperature Measurement Range||-20℃~150℃, 0℃~550℃|
|Temperature Measurement Accuracy||Greater of ±2℃ or ±2%|
|SDK||Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature|
|Dimension (mm)||25.4×25.4×35 (Without Lens)|
|Weight||25g (Without Lens)|
|Vibration||5.35grms, 3 Axis|
|Shock||Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction|
|Optional Lens||Fixed Athermal: 13mm|
The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue
1. How are thermal camera cores different from complete thermal cameras?
Thermal camera cores are the core components of thermal cameras, while complete thermal cameras consist of the thermal camera core along with a housing, display module, user interface, and additional features like image storage and data processing capabilities. Thermal camera cores are often used by manufacturers or integrators to develop custom thermal imaging solutions for specific applications.
2. What are the applications of infrared detectors and thermal camera cores?
Infrared detectors and thermal camera cores are used in various fields and applications, including:
Thermography and building diagnostics
Industrial process monitoring and control
Security and surveillance
Firefighting and search and rescue operations
Automotive safety systems
Agriculture and animal monitoring
Research and development in various scientific disciplines
3．Are there different types of infrared detectors and thermal camera cores?
Yes, there are various types of infrared detectors, including thermopiles, bolometers, pyroelectric detectors, and photon detectors. Similarly, there are different types of thermal camera cores available, ranging from low-resolution cores suitable for basic applications to high-resolution cores used in advanced thermal imaging systems. The choice of detector type and camera core depends on the specific requirements of the application.
