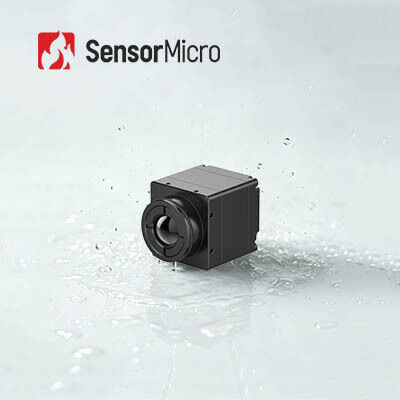

LWIR VOx 384x288 Resolution Shutterless Design Compact and Lightweight Uncooled Thermal Camera Core for Industrial Vision

The iSE412 thermal camera core utilizes a 384x288 / 12μm uncooled LWIR infrared detector with a spectral range of 8μm ~ 14μm. This advanced infrared camera core eliminates the need for shutter calibration, effectively resolving issues of stuttering and noise during observation. To meet diverse user requirements, the iSE412 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other features. It also offers various video interfaces and lenses for easy integration. The compact camera core measures less than 25.4×25.4×22.7mm with a bare core weight under 26g, delivering smooth and stable detection performance even in limited space and demanding conditions.

As an OEM manufacturer specializing in infrared detectors and thermal imaging camera modules, we empower diverse industries with advanced infrared core technologies. With years of technical expertise and in-depth industry application experience in infrared optics, we deliver comprehensive thermal imaging vision solutions to clients across all fields, bringing efficient, reliable, and high-value technological advantages to various sectors.

• No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
• Silent operation ensures discreet use without mechanical noise

• Total system dimensions as small as 25.4×25.4×22.7 mm, bare core weight ≤26±1.5g
• Space-saving structural design allows flexible system layout and integration

• Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
• Compatible with multiple optical lenses and extension components for easy secondary development and system customization

The iSE412 uncooled IR camera module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
