1280x1024 / 12μm Uncooled LWIR Radiometric Infrared Thermal Camera Module
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212R |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 / 12μm | Frame Rate | 30Hz |
|---|---|---|---|
| NETD | ≤40mK/F1.0/25℃ | Spectral Range | 8~14μm |
| Typical Power Consumption | 1.0W | Supply Voltage | 4.5~5.5V |
| Highlight | Radiometric Infrared Camera Module,Infrared Camera Module Uncooled |
||
Product Description

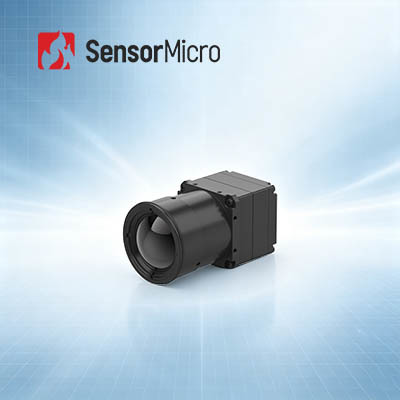

1280x1024 / 12μm Uncooled LWIR Radiometric Infrared Thermal Camera Module
Product Overview
The COIN1212R infrared camera core features a megapixel 1280*1024/12μm uncooled infrared detector, integrated with advanced signal processing circuits and temperature measurement algorithms. It supports widely adopted serial communication protocols and offers a variety of video output interfaces along with a full range of optical lens options.
Capable of quickly detecting temperature differences and delivering clear thermal images and precise temperature data, it significantly streamlines secondary development of temperature measurement systems. This makes it an all-in-one thermal imaging integration solution for applications in intelligent monitoring, high-end manufacturing, process control, scientific research, and other high-end thermal imaging applications.
It is widely used in areas such as Predictive Maintenance, Metallurgical Petrochemical, Machine Vision, Building Inspection, New Energy, Rail Traffic and other industries.
Main Features
- High-Definition Imaging, Precise Detection
- Megapixel high-definition detection enables infrared temperature measurement over wider views and larger areas
- When monitoring tiny temperature variations, more thermal details of the target are clearly revealed
- Full-Featured and Efficient
- Developed with a top-tier large-format uncooled infrared detector
- Integrated with multiple advanced image processing algorithms to enhance image quality
- Temperature measurement accuracy up to ±3°C or ±3%, supporting -20°C to 150°C and 0 to 550°C ranges, with customizable extensions
- Multiple Configurations, Rapid Integration
- Supports various image output modes including DVP and BT.1120
- RAW/YUV image data output with serial port control
Product Specifications
| Model | COIN1212R |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280*1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤40mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 30Hz |
| Start-up Time | 6s |
| Analog Video | / |
| Digital Video | RAW/YUV422/TMP |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0 |
| Communication Interface | TTL-232 |
| Digital Video Interface | DVP16/BT.1120/MIPI |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 1.0W |
| Temperature Measurement | |
| Operating Temperature | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃; Support Customization and Expansion |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Partial Temperature Measurement | Support output maximum, minimum and average value of temperature measurement areas |
| SDK | Android/Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Mechanical | |
| Bare Core Size(mm) | 14mm/19mm/25mm: 25.4mm*25.4mm*19.3mm 35mm/50mm/100m: 35.4mm*35.4mm*17.8mm |
| Bare Core Weight(g) | 14mm/19mm/25mm: 19.7±1g 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/24mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
- Electric Power Inspection
- Machine Vision
- Building HVAC Security & Monitoring
- Outdoors
- Firefighting & Rescue
- Law Enforcement & Rescue
Product Benefits
Diverse Product Portfolio
A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety
Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance
Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
Easy Integration
Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.
What is the advantage of infrared thermal imaging?
- See through total darkness
- Identification under camouflage
- Long range detection
- Heat distribution detection
- Non-contact temperature measurement
- Occupation awareness
What is the applications of infrared thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
