Compact Design 384x288 17μm COIN417RG3 Uncooled Thermal Camera Core with Radiometric Function
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN417RG3 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 384x288/17μm | Temperature | -20℃~+550℃ (Customizable) |
|---|---|---|---|
| NETD | ≤30mK | Spectral Range | 8~14μm |
| Digital Frame Rate | 25/30/50Hz | Typical Power Consumption | 0.65W |
| Highlight | 400x300 Compact Thermal Camera,Compact Thermal Camera Core Uncooled |
||
Product Description

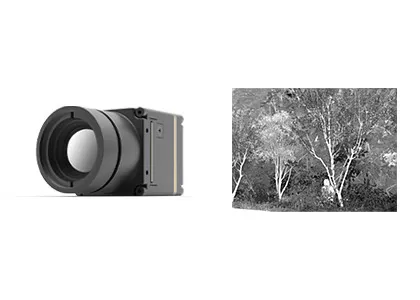

Compact Design 384x288 17μm COIN417RG3 Uncooled Thermal Camera Core
Product Overview
COIN417RG3 uncooled infrared module uses the fully optimized SWaP-C wafer level package (WLP) infrared imaging detector with 384*288 resolution and 17μm pixel size. It also has an optional thermographic function with measurement range from -20℃ to 550℃ for industrial temperature measurement.
Thanks to the wafer level packaging technology, the WLP infrared detector has simpler manufacturing process and easier integration, making it suitable for high volume and low cost production.
The COIN417RG3 infrared module features sharp and crisp thermal image presentation, compact size and low cost. Its lightweight and flexible design with various industry standard interfaces makes it popular in infrared applications.
Main Features
Comprehensive Features, Cost-Effective
- Developed based on cost-effective uncooled IR detectors
- Integrated with advanced image processing algorithms to enhance image quality
- High temperature measurement accuracy up to ±2°C or ±2%, supporting temperature ranges of -20°C to 150°C and 100℃ to 550℃, customizable for extended ranges
Flexible Extension, Fast Integration
- Multiple optical lens options available to meet various application needs
- Supports multiple output modes including USB2.0/DVP/LVDS/BT.656
- Outputs RAW/YUV image data, with serial port control
Product Specifications
| Model | COIN417RG3 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 384*288 |
| Pixel Size | 17μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50Pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Temperature Measurement | |
| Operating Temperature | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~+150℃, 100℃~+550℃ |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Partial Temperature Measurement | Support output maximum, minimum and average value of temperature measurement areas |
| SDK | Android/Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Mechanical | |
| Bare Core Size(mm) | 25.4*25.4*16.5 |
| Bare Core Weight(g) | 16.6±1 |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
Thermography
Security & Monitoring
Outdoors
Firefighting & Rescue
AIoT
Intelligent Hardware
ADAS
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support—quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
What can infrared imaging be used for?
- Night vision
- Search & rescue
- Non-destructive test
- Epidemic prevention
- Thermography
- Security & monitoring
- Firefighting
What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
