Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector

I'm Online Chat Now

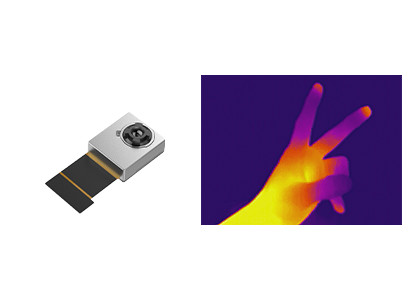

Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector

Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector
Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector

Large Image :  Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: TIMO256
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 NETD: ≤45mK
Pixel Pitch: 12μm Size: 15x13x6.83mm
Spectral Range: 8~14μm Frame Rate: 1~30Hz
High Light:

RoHS Infrared Thermal Camera Module

,

Infrared Thermal Camera Module 256x192

,

LWIR Uncooled Thermal Camera

TIMO256 Uncooled LWIR Thermal Module



Small Size 256x192 / 12μm Uncooled Focal Plane Array LWIR Infrared Thermal Camera Module



Product Description



TIMO256 is a tiny thermal sensor module with ultra compact, simplifying package design. It integrates optical lens, 256x192 / 12μm wafer level package (WLP) long wave infrared detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.



TIMO256 infrared camera module is fully optimized with small size, light weight & low price (SWaP) to meet the strict requirements of customers in the infrared thermal imaging applications, but it still provides better image quality. Its super miniature structure, compact package dimension and ultralow power consumption are convenient to be integrated into various inspection tools, security monitoring cameras or handheld infrared thermal imagers.



Main Features



- Focal plan array VOx microbolometer

- 256x192 / 12 µm uncooled long wave infrared (LWIR) detector

- Low power consumption micro thermal camera module

- High precision human body / industrial temperature measurement



Product Specifications



Model TIMO-256
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤45mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 53°±1°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
Interface/Control
AVDD 3.6V±0.05V
VSK/VDET 5.0±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 70mW
Physical Characteristics
Dimension (mm) 15x13x6.83 (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C



Industrial Applications



The TIMO256 uncooled LWIR thermal module is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector 0



Our Advantages



Infrared Thermal Camera Module with 256x192 12μm Uncooled LWIR Detector 1



FAQs



1. What is NETD?
NETD refers to "Noise Equivalent Temperature Difference". It is a measure for how well a thermal imaging detector is able to distinguish between very small differences in thermal radiation in the image. NETD is typically being expressed in milli-Kelvin (mK). Usually the lower the NETD figure is, the higher the thermal sensitivity indicates.



2. What is SWaP3?
SWaP3 refers to size, weight, power, performance and price. It indicates the technology trend of infrared industry.



3. What is DRI?
DRI usually refers detection, recognition and identification distance of a thermal imaging system. It is a crucial parameter to judge the performance of the thermal imaging system.
